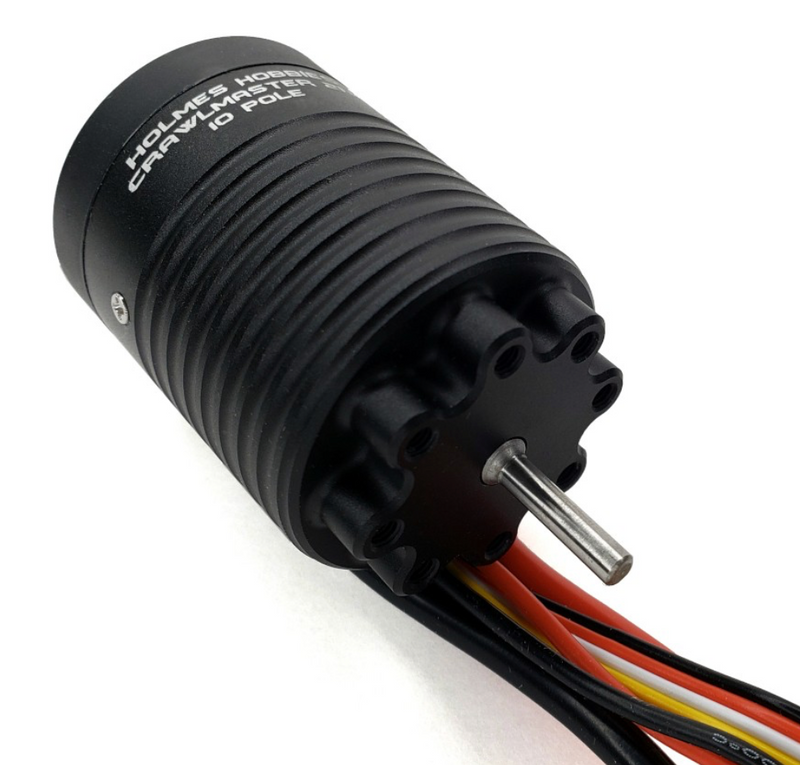

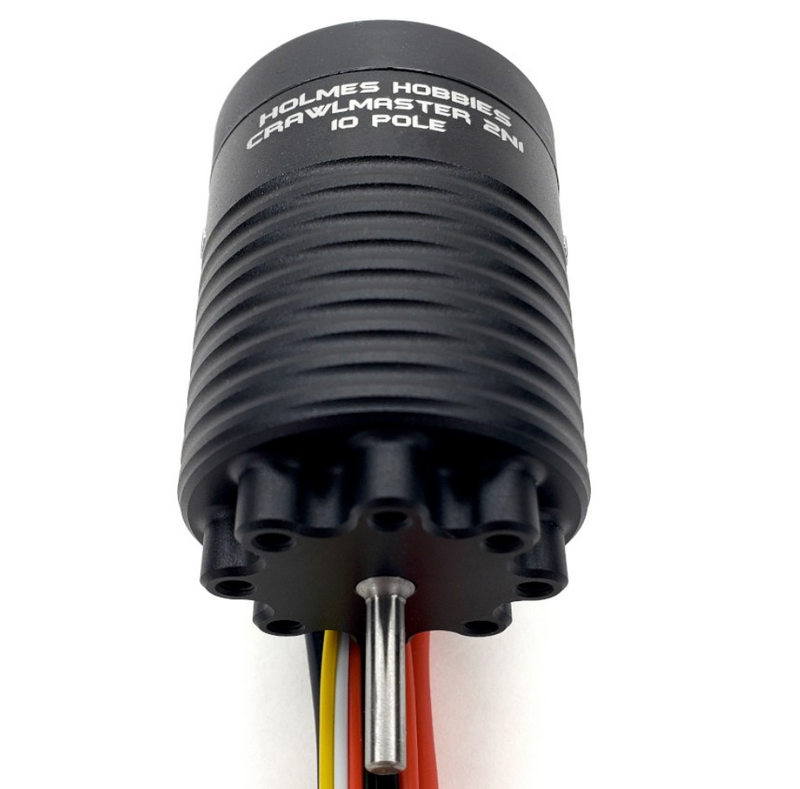

Holmes Hobbies 710100004 CRAWLMASTER 2n1 Brushless Crawler ESC and 2300 Motor System
The Holmes Hobbies Crawlmaster 2n1 features custom brushless 10 pole inrunner stator and large diameter high strength rotor for maximum torque and rpm control, ultra compact 50mm long aluminum element sealed housing, beefy bearings, and integrated ESC for plug and play fun! The exclusive 10 pole 12 slot magnetics are designed for rock crawlers and scale trucks, dominate the trail like never before!
The Crawlmaster 2n1 is shorter than other 2n1 motors, but does not sacrifice power or torque! It has a full 540 class stator that was designed compact, don't let the short case fool you! The highest quality materials were mated with the latest magnetic designs, so this system is made for competition yet suitable for your longest trail sessions too!
FEATURES:
- 2n1 motor with ESC
- Perfect for 1/10 crawlers and scale trucks
- Massive 21mm diameter high torque rotor
- Compact and lightweight waterproof inrunner design
- Prewired with XT60 plug and JST for accessory power
- Aux wire drag brake control
- Ultra smooth startup
- Comes with AM32 firmware installed and tuned
- Includes USB programmer
SPECIFICATIONS:
- Type: 540 Sensorless Brushless Inrunner with integrated 40 amp ESC
- 5 amp 7.4 volt BEC
- kV Rating: 2300
- Input Voltage: 2-4S
- Slot: 12
- Pole: 10
- Length: 50mm
- Diameter: 36mm
- weight: 154g
- Shaft diameter x length: 3.175mm x 15mm
- No load Current: 2.2a at 10v
- Terminal Resistance of motor: 19.2mOhm
