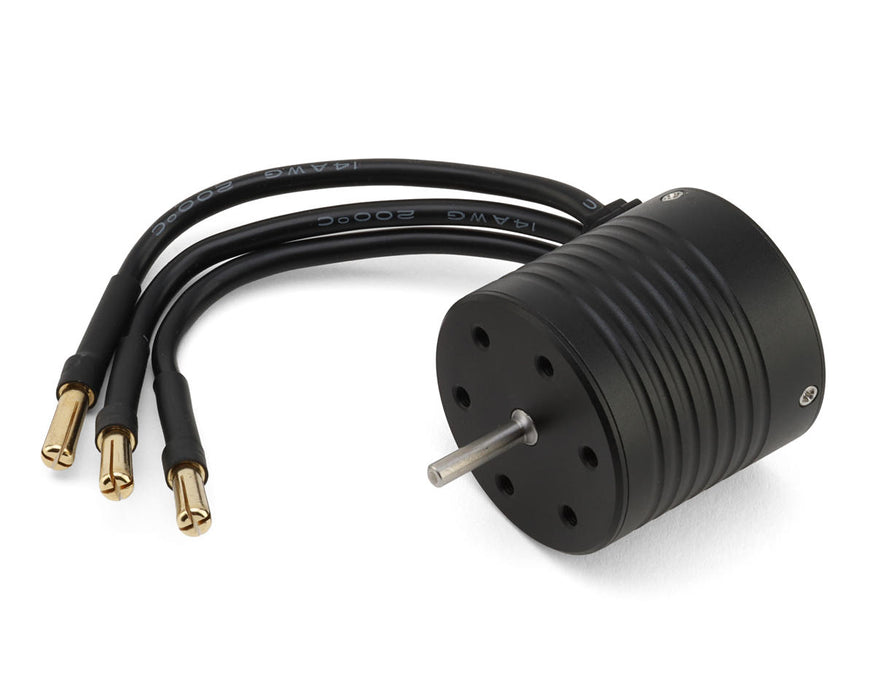

Holmes Hobbies 120100110 CRAWLMASTER 540 Stubby 1800Kv 10 Pole Inrunner Brushless Crawler Motor
The Crawlmaster V2 540 Stubby 10 Pole Inrunner Rock Crawler Motor from Holmes Hobbies is designed to deliver exceptional torque and control in a compact package. Built for serious crawlers and scale truck enthusiasts, this motor offers smooth startup and precise throttle response. Its shortened stubby design reduces weight without sacrificing performance, making it ideal for tight chassis setups.
This motor utilizes advanced 10 pole 12 slot magnetics paired with a large diameter rotor to produce impressive torque and low-speed control. The compact aluminum sealed housing protects internal components while maintaining lightweight efficiency. Oversized bearings and high-quality materials ensure durability under demanding conditions, while the ultra low no-load current improves overall efficiency. Equipped with 4mm gold-plated bullet connectors, this motor offers convenient plug-and-play installation and reliable power delivery.
FEATURES:
- 10 pole 12 slot magnetic design
- High torque large diameter rotor
- Compact stubby 540 size
- Smooth startup performance
- Ultra low no load current
- Oversized ball bearings
- Waterproof sealed design
- 4mm gold plated connectors
- Efficient power delivery
SPECIFICATIONS:
- Application: 1/10-1/12 Crawler
- Type: Sensorless Brushless
- Size: 540 Stubby (1800Kv)
- Input Voltage: 2-4S LiPo
- Connectors: 4mm Bullet
- Length: 1.38in (35mm)
- Diameter: 1.42in (36mm)
- Shaft Length: 0.6in (15mm)
- Shaft Diameter: 1/8in (3.17mm)
- Weight: 5.15oz (146g)
