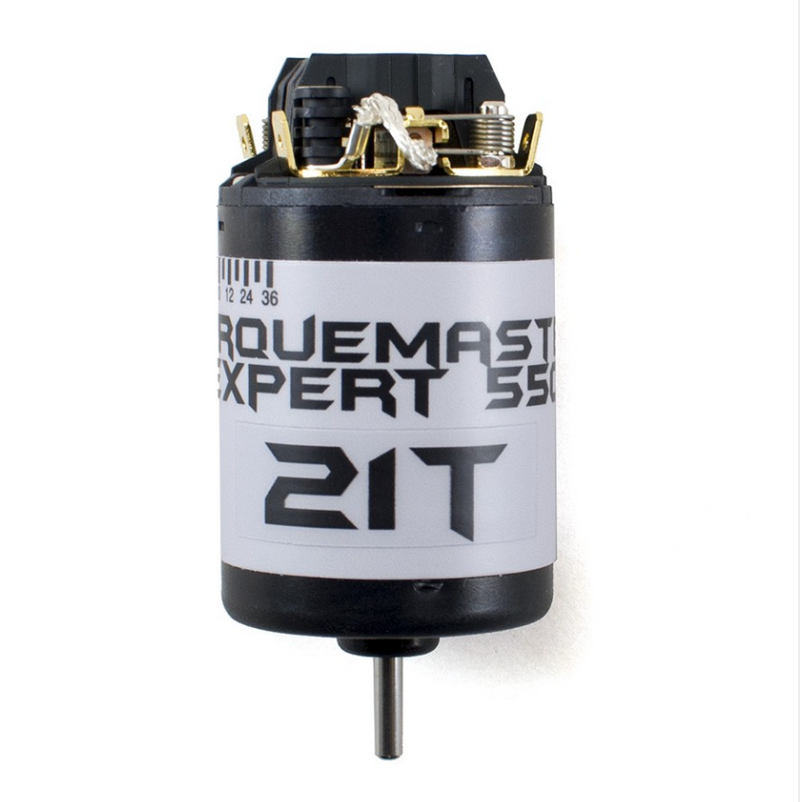

Holmes Hobbies 110100051 TORQUEMASTER EXPERT 550 21T Brushed RC Motor

When you need a quality brushed motor, look no further than the TorqueMaster Expert 550 from Holmes! The Expert series features the same quality construction as our handwound Pro motors, but with a machine wound armature for an affordable alternative.

FEATURES:

• 550 size provides extra torque and power
• Machine wound for affordability
• 5mm web 3 slot armature- Maximizes torque, efficiency, and offers smooth startup
• Gold-plated copper brush hoods to resist corrosion and provide lowest resistance
• Aluminum heatsinks shed heat
• Filter PCB reduces EMF noise
• Brush damper reduces noise and arcing
• Can – 1.4mm thick uninterrupted back iron
• High-power FB12 ceramic wet magnets maximize torque and efficiency
• Dual Japanese Ball bearings
• Adjustable timing
• Holmes XX springs for consistent drag brake
• Holmes Soft Copper brushes for high torque and longest motor life
• Broken in for immediate installation and use

SPECIFICATIONS:

• 21 turn three slot / 27,250 RPM @12v @ 12 degrees timing
• 206 grams
• 36mm OD x 60mm length (not including shaft)
• 1/8" diameter D shaft
• 1" (25.4mm) mounting pattern for M3 screws
• 6-9 cell nimh, 2-3s Lithium
• 23mm OD x 29mm length rotor
