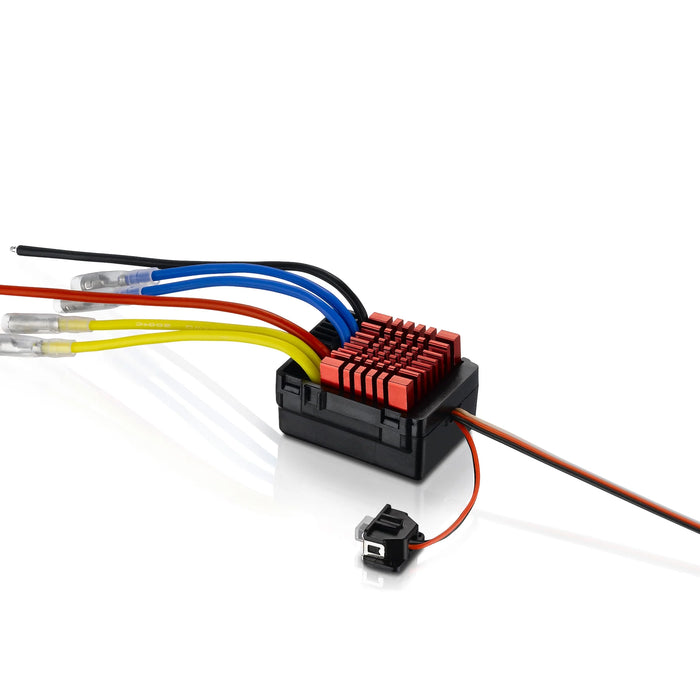

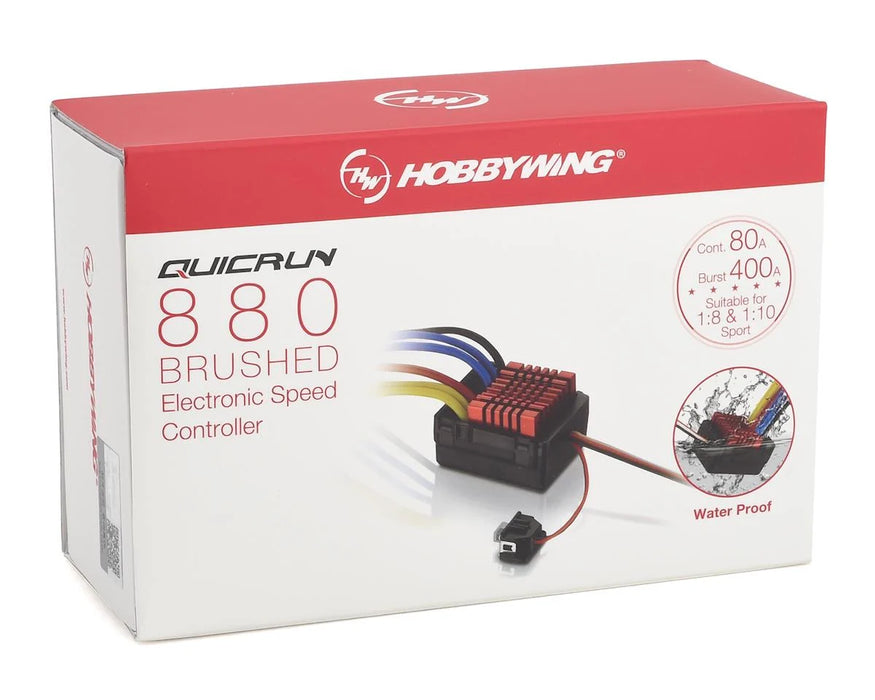

HOBBYWING 880 QuicRun Brushed Waterproof ESC for Dual Motors

FEATURES:

• Fully waterproof design for all conditions. (Note: Please clean and dry it after use for avoiding rusty connectors)
• HOBBYWING patented copper heat-conductive plates attached to the MOSFET board allows the internal heat to be quickly transferred to the aluminum heat sink for great heat dissipation
• Built-in switch-mode BEC with cont. current of 4A
• Tunable drag brake and drag brake rate for different vehicles, tracks, and control feel
• Adjustable PWM frequency combined with advanced freewheeling (/DEO) technology guarantees great throttle linearity and driving feel
• 9 levels of acceleration/ punch from soft to aggressive for different vehicles, tires and tracks
• Proportional brake with 9 levels of initial brake force, maximum brake force, and drag brake force
• Multiple protections: low-voltage cutoff protection, thermal protection, and throttle signal loss protection
• Separate programming port to easily connect the LED program card to the ESC
• ESC programming via HOBBYWING LED Program Card

SPECIFICATIONS:

• Cont./Peak Current: 80A/400A
• Motor Type Supported: Brushed Motor (540, 550, 775 Size Motor)
• Applicable Car: 1/10th Vehicles & MOA style comp crawlers
• Motor Limit:
• Brushed Motor Limit with 2S LiPo /6S NiMH: ≥ 12T or RPM<30000@7.4V (540, 550 Size Motors)
• Brushed Motor Limit with 3S LiPo /9S NiMH: ≥ 18T or RPM<20000@7.4V (540, 550 Size Motors)
• Brushed Motor Limit with 4S LiPo /12S NiMH: ≥ 24T or RPM<15000@7.4V (540, 550 Size Motors)
• LiPo / NiMH Cells: 2-4S LiPo or 5-12S NiMH
• BEC Output: 6A@4A (Switch-Mode)
• Connectors: Input End: No Connectors; Output End: 4.0mm Female Bullet Connectors
• Size/ Weight: 45.9x34.7x26.5mm/ 75g
• Programming Port: Separate Port
• Waterproof: Yes
