HOBBYWING 38030216 Quicrun WP 10BL80 Crawler & 3530SL 2200KV Outer Motor Combo

Designed specifically for crawlers, this brushless power system pairs the QuicRun WP 10BL80 Crawler ESC with the 3530SL 2200KV external rotor motor to deliver exceptional low-speed control, smooth throttle response, and impressive climbing torque.

FEATURES:

• Supports Sensorless Brushless motors & Brushed Motors
• Compatible with most brushed or brushless motors on the market
• Fully waterproof design for all conditions
• Super internal switch-mode BEC with switchable voltage of 6V/7.4V/8.4V for usage with high torque and high voltage servos
• Separate programming port to easily connect the LED program box or the LCD program box pro to the ESC
• Multiple protections: motor lock-up protection, low-voltage cutoff protection, thermal protection, and fail safe (throttle signal loss protection)
• It has the function of using transmitter (AUX channel) to adjust the drag brake force in real time

SPECIFICATIONS:

• ESC:
  • Continuous / Peak Current: 80A / 240A
  • Motor Type: Sensorless brushless motor, and brushed motor
  • Applications: 1/10 Crawlers
  • Applicable Motors: Outer 3530SL sensorless outrunner motors: 540, 555 including other brushed motors.
  • LiPo Cells: 2-4S LiPo
  • BEC Output: 6.0V / 7.4V / 8.4V, 5A
  • Size: 36(L)*30(W)*15.5(H)mm
  • Weight: 47.8g (Included wires & connectors)
  • Programming Port: Independent programming port
• Motor:
  • KV: 2200
  • LiPo Cells: 2-4S
  • No-Load Current (A): 5
  • Max Output Power (W): 520
  • Current @ Max Input Power (A): 40
  • Diameter / Length: 35mm (1.38") x 30mm (1.18")
  • Shaft Diameter / Length: 3.175mm (0.13") x 15.5mm (0.61")
  • Poles: 14
  • Weight: 102g
  • Applications: 1/10, 1/12 Crawler

INCLUDES:

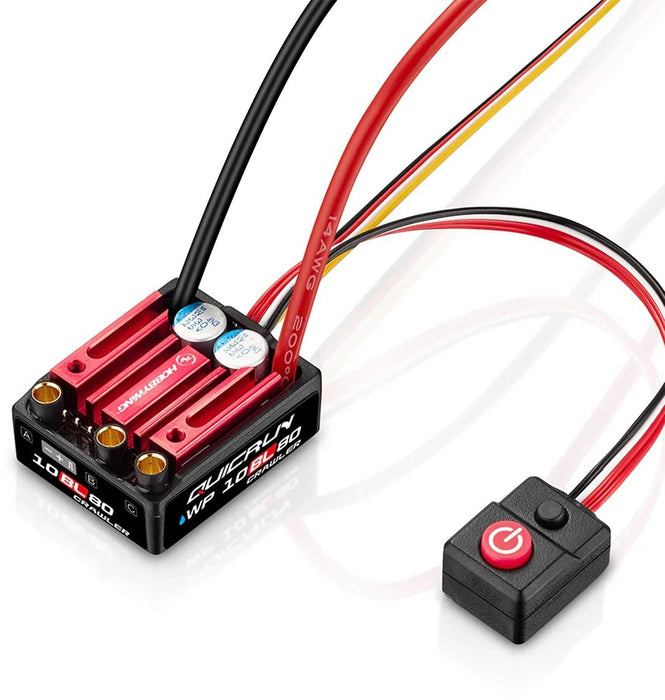

• 1x WP 10BL80 Crawler ESC

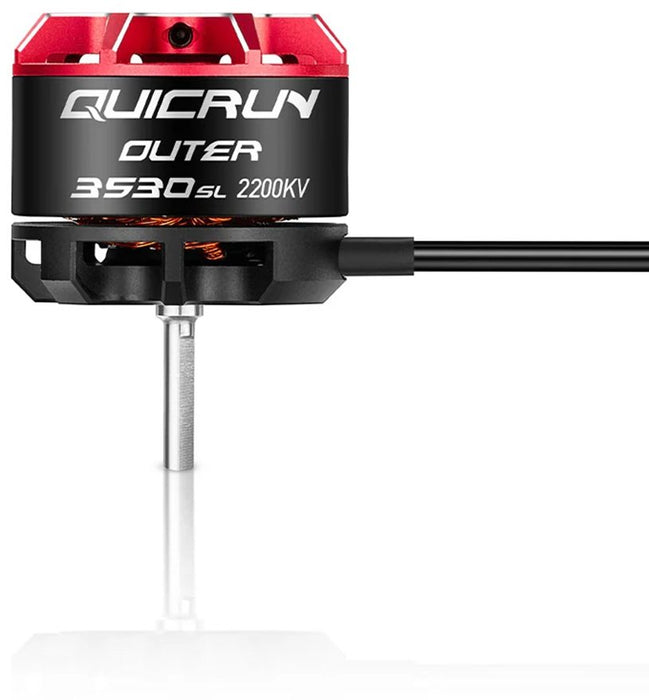

• 1x QR 3530SL 2200KV Outer Motor
• Factory-installed XT60 plug
• 1x Decal and Manual
• 1x Heatshrink kit, double-sided tape, and zip ties
