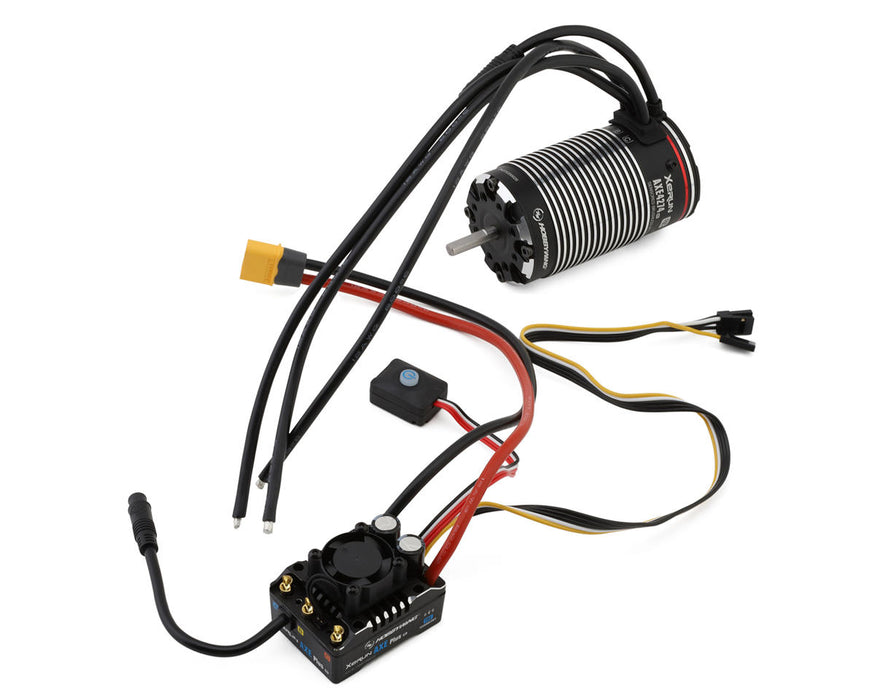

HOBBYWING 38020383 XeRun AXE R3 ESC and 2000KV 4274 SD Sensored Brushless Motor Combo

Discover the ultimate upgrade for your rock crawler with the Hobbywing XeRun AXE Plus R3 Combo, combining the groundbreaking AXE R3 Brushless ESC and the high-performance AXE R3 Brushless 2000kV Motor. Experience unmatched power, precision, and durability, designed to dominate the toughest trails and deliver an unparalleled crawling experience.

FEATURES:

• Field Oriented Control (FOC) system with buttery smooth powerful torque
• Intelligent torque output and speed closed-loop control
• Increased maximum power output by 106% and efficiency by 11%
• Super powerful switchable internal 15A BEC
• Adjustable drag brake & drag brake rate with a maximum drag brake of up to 200%
• Built-in Bluetooth module & data logging functions
• Dual external control channels, real-time adjustment of parameters
• IP67 waterproof and dust-proof design
• CNC-machined finned aluminum case
• Smart fan start and stop function

SPECIFICATIONS:

• ESC:
  • Battery Connector: XT60
  • Input Voltage: 2-6S LiPo (7.4-22.2V)
  • Continuous Current: 135A
  • Burst Current: 600A
  • BEC Voltage: 6-8.4V
  • BEC Continuous Current: 6A
  • BEC Peak Current: 15A
  • Dimensions: 1.94x1.49x1.29in (49.5x37.9x32.8mm)
  • Weight: 4.461oz (126.5g)
• MOTOR:
  • Size: 2000kV
  • Type: Brushless - Sensored
  • Input Voltage: 3-6S (11.1-22.2V) LiPo
  • No Load Current: 4.5A
  • Poles: 4

  • Connector: Bullets
  • Length: 2.91in (74mm)
  • Diameter: 1.65in (42mm)
  • Shaft Length: 0.73in (18.5mm)
  • Shaft Diameter: 0.197in (5mm)
  • Weight: 14.63oz (415g)

INCLUDES:

• (1) Xerun AXE Plus R3 Sensored Brushless ESC
• (1) Brushless Sensored Motor (2000kV)
• Product Manual
