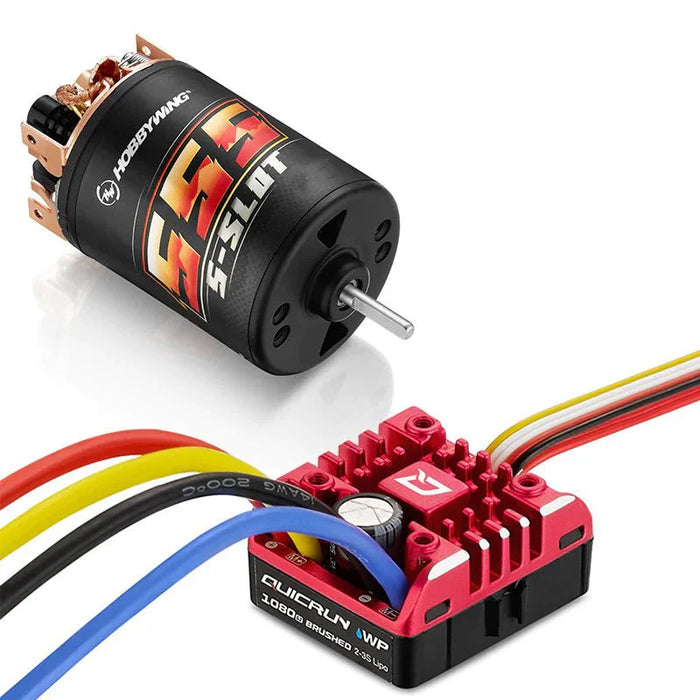

HOBBYWING 38020352 QuicRun 1080 G2 ESC with 555 13T Brushed Motor Combo

QuicRun 1080 G2 ESC with 555 13T Brushed Motor Combo

FEATURES:

• Fully Water-proof and dust-proof, suitable for all-weather races.
• Small in size, with a built-in capacitor module.
• Four operating modes available (Real Car Operating / FWD with Brake / FWD and REV with Brake / FWD and REV)
• In the first "real car mode" The direction of the motor is switchable in real time by using the idle channel on the remote control.
• Real-Time Adjustment of Drag Braking Force.
• 15 programmable parameter items
• PWM Frequency: 1K/2K/4K/8K/16K Adjustable
• Freewheeling (DEO) capability
• Drag brake rate in 9 levels (adjustable)
• Electronic switch
• Aluminum case for great heat dissipation
• Great current endurance capability.
• Great built-in BEC output capacity switchable 6V/ 7.4/ 8.4V
• Automatic throttle range calibration, easy to use.
• Multiple protections:
• Over Voltage Protection
• Low voltage cut-off protection for battery
• Over-heating protection
• Throttle signal loss protection, and much more

SPECIFICATIONS:

• ESC:
  • Brushed ESC: WP 1080 G2

  • Waterproof: Yes
  • Dual Mode: No
  • Fwd Cont. / Peak Rev Cont. / Peak: 80A / 400A
  • Car Applicable: 1/10 Rock Crawler
  • Motor Limit: Brushed Motors 540/550 Series 2S LiPo or 5S NiMH, =10T or\RPM<3000@7.4V; 3S LiPo or 9S NiMH, =16T or RPM<2000@7.4V
  • Battery: 2-3S LiPo or 5-9S NiMH
  • BEC Output: 6V/7.4V/8.4V @ 4A (switch-mode)
  • PWM Frequency: Adjustable 1K/2K/4K/8K/16K
  • Wires: 14AWG-200mm w/ XT60 Connector
  • Size/ Weight: 37.2(L)* 31.9(W)*18.4(H) (without fan)
  • External Program Port: Separate Port Available
  • Programming: LED Program card
  • Weight*: 70.2g w/ wire and connectors
• MOTOR:
  • Model: QUICRUN Brushed 540
  • Slot: 5
  • Turns: 131T
  • (RPM@7.4V): 14000
  • Input Voltage: 12.6V
  • Diameter/ Length(mm): ɸ=36mm(1.42in) L=58.5mm(2.30in)
  • Shaft Diameter/ Length (mm): ɸ=3.175mm(0.125in) L=16.5mm(0.65in)
  • Applications: 1/10 Crawler / Short course truck / Monster truck
  • Weight: 193g
