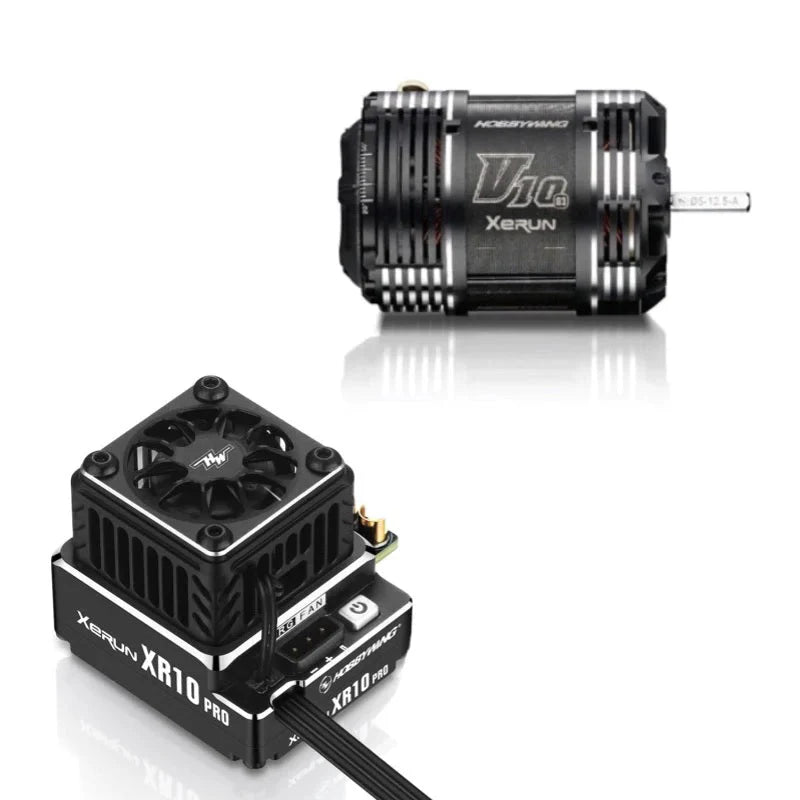

HOBBYWING 38020331 ExRun XR10 Pro G2S ESC and V10 G3 7.5T Brushless Motor Combo

ExRun XR10 Pro G2S ESC and V10 G3 7.5T Brushless Motor Combo

FEATURES:

• ESC:
• Upgraded 32-bit M4 microprocessor with more powerful processing capability guarantees stable control and rapid response. (Industry's highest 32-bit microprocessor, increased processing speed by X4)
• Peak current up to 1200A. (This is not a typo)
• Built-in switch mode BEC with a maximum output of 10A and voltage adjustable from 5V to 7.4V (step: 0.1V) for usage with servos & other devices require different voltages.
• Variable frequency regulation of PWM & amp; brake frequencies allows users to precisely regulate the driving; braking forces (of the motors).
• Expanded range of the max. brake force brings in the active brake ranges from 101% to 150%.
• Softening function (HOBBYWING-initiated) for milder or wilder driving control and better driving efficiency.
• 10 select-to-use profiles applicable to all 1/10th RC car racing.
• Internal electronic key switch for long service life, high reliability; and the external switch port for connecting an external switch (included in the product box) is applicable to different situations.
• Separate PRG/FAN port is able to power an external fan for maximize cooling performance or connect a LCD program box or WiFi module to the ESC.
• With the Updated WIFI express module (purchase separately), users are able to program parameters, upgrade firmware and check relevant data during the event using either the iPhone or Android devices.
• Switchable motor direction (CCW/CW) for various chassis.
• Multiple protections comes in standard
• Low-voltage cutoff protection
• ESC and motor thermal protection
• Fail safe (throttle signal loss protection)
• Reverse polarity protection
• Data logging for recording the maximum ESC/motor temperature, motor speed/RPM, and others in real time.
• Firmware upgrade via Hobbywing multi-function LCD program box or WiFi Express (item sold separately).
• Motor:
• Specially designed for high-level racing.
• Lightweight: The G3 Modified & Stock motors only weigh 161g & 132g respectively, the weights are reduced by 11% & 21% when comparing with the V10 G2 motors.
• The built-in high precision Hall sensor combined with the high precision and balanced rotor guarantee outstanding linearity of the motor.
• The mechanical timing can be adjusted finely and smoothly; the skid-proof lines on the rear end plate of the motor guarantee stability of the timing after adjustment. For G3 Stock motors (10.5T~25.5T), the timing is adjustable from 30 degrees to 60 degrees; for Modified motors (3.5T~8.5T), the timing is adjustable from 20 degrees to 50 degrees.
• The motor case is designed to be easy to dismantle for maintenance purposes and for the replacement of common wearing parts.
• The special shell design which makes the stator core expose to the air maximizes cooling. Big holes on the end plates of 10.5T~21.5T motors further help reduce heat; small holes on the end plates of 5.5T~8.5T motors effectively keep sand or dirt from getting inside and damaging the motor(s).
• The use of high-performance stator core, heat (200°C) resistant wire, heat (200°C) resistant rotor with strong structure, imported high precision and high strength bearings, and copper solder tabs with super current endurance guarantees outstanding performance and super durability.

SPECIFICATIONS:

• ESC:
• Cont./Peak Current: 160A / Burst: 1200A
• Battery: 5-6 cells NiMH/NiCd / 2S LiPo
• BEC Output: 5V-7.4V
• Motor Supported: Sensored and sensorless brushless motors
• Suitable Motor: 3650 Motors 1/10th Touring Car: 4.5T, 1/10th Buggy: 5.5T
• Application: Brushless motor system for 1/10th, 1/12th Touring Cars & Buggies Racing, Splash proof
• Wires: Standard 13AWG 200mm
• Size: 37.5X30.9X32.5mm
• Weight: 90g (with wires)
• Motor:
• kV: 4420
• LiPo: 2S
• Resistance: 0.0074
• No-Load Current (A): 3.3
• Max Output Power (W): 346
• Current @ Max Output Power (A): 100
• Diameter/Length (mm): 35.9mm (1.41in)/51.2mm (2.01in)
• Shaft Diameter/Length (mm): 3.17mm (0.125in)/13.3mm (0.52in)
• Stock Rotor: 5-12.1
• Sensored: Yes
• Brushless: Yes
• Poles: 2
• Weight (g): 161
• Applications: 1/10 Drift, 2WD Off-Road Racing

INCLUDES:

• 1x XR10 Pro G2S ESC (2022)
• 1x XERUN V10 G3 Competition Brushless Motor
• 1x Bonus item(s)
• (2) Input wires & (3) Output wires -PRE-SOLDERED-
• (2) x cooling fan
• Dual capacitors
• Decals
• Parts: heat tubes, double tape, nylon cable zip ties
