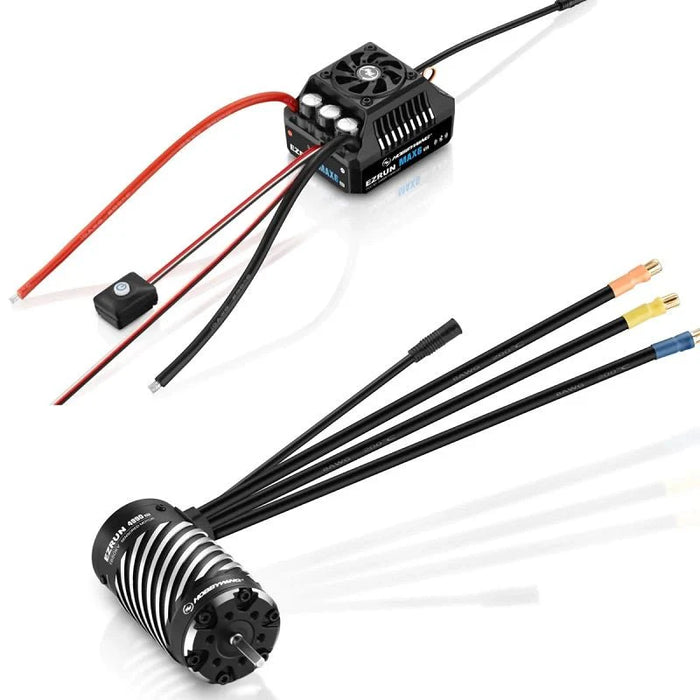

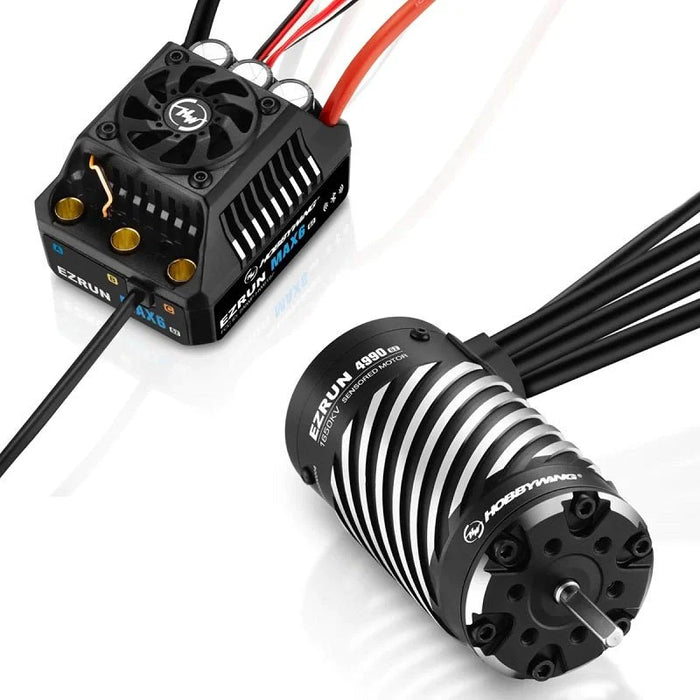

HOBBYWING 38010803 EzRun MAX6 G2 ESC and 4990 SD Sensored Brushless Motor Combo

EzRun MAX6 G2 ESC and 4990 SD Sensored Brushless Motor Combo

SPECIFICATIONS:

• MOTOR:
  • LiPos: 3-8S
  • No-Load Current: 7.0A
  • Diameter/Length: D-49mm (1.93") / L-90mm (3.54")
  • Shaft Diameter/Length: 5mm (0.20") / L-21.5mm (0.85")
  • Bearing Size (mm): Front: D19*D6*T6 / Rear: D19*D6*T6
  • Poles: 4
  • Weight: 701g
  • Applications: 1/7th On-Road, Short Course Truck, Truck / 1/8th Heavy-Duty Monster Truck
• ESC:
  • Cont./Peak Current: 200A / 1200A
  • Motor Type: Sensored / Sensorless Brushless Motor
  • Applications: 1/6 & 1/7 On-Road, Truck, Monster Truck
  • Motor Limit (note): With 6S LiPo: KV<2400 / With 8S LiPo: KV<1700 4990/5690 Size Motor
  • LiPo Cells: 3-8S LiPo
  • BEC Output: 6V/7.4V/8.4V adjustable, continuous current 8A (Switch-mode)
  • Cooling Fan: A stable 6V or 7.4V or 8.4V from the built-in BEC
  • Size/Weight: 70(L) x 56(W) x 45.5(H)mm / 245g (Included input wires)
  • Programming Method: iOS or Android smart phone (installed with the HW LINK app)

INCLUDES:

• (1) Ezrun MAX6 G2 ESC
• (1) EzRun 4990 SD G2 motor or EzRun 5690 SD G2 motor with your choice.
• User's manual
• A HOBBYWING decal
