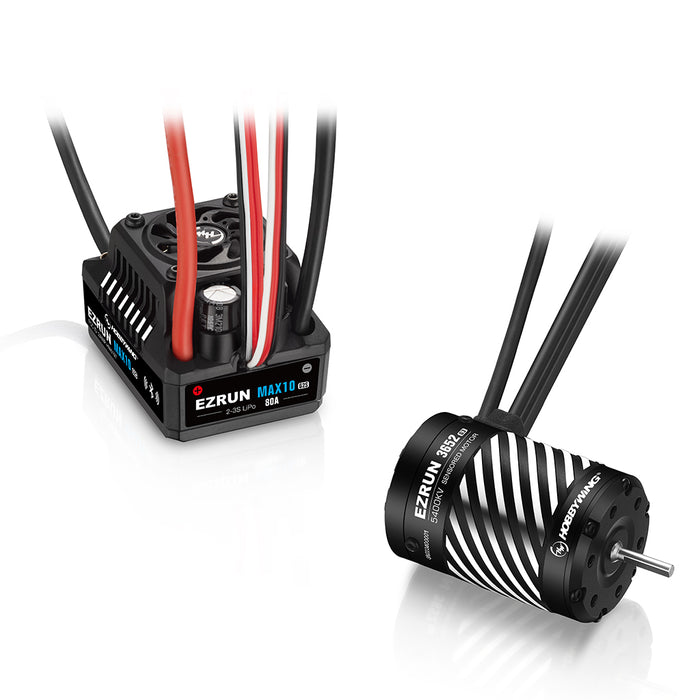

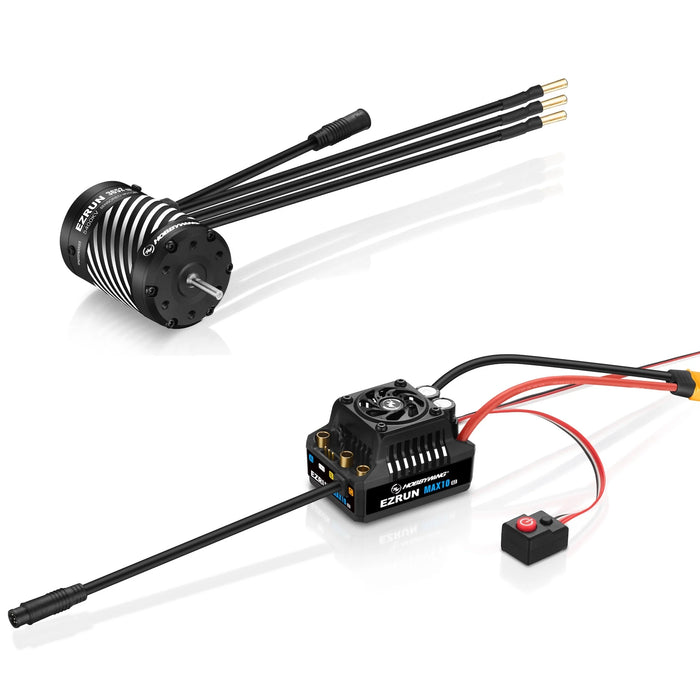

HOBBYWING 38010208 Max10 G2S ESC and EZRUN G3 3652SD 5400KV Brushless Motor Combo
The EzRun MAX10 G2S sensored ESC is designed to deliver strong acceleration together with stable, linear power output. Instant throttle response allows for aggressive launches, while refined low-speed control improves precision in technical sections. Whether under hard acceleration, steady high-speed running or over jumps, the system maintains consistent power delivery, offering enhanced control and improved overall drivability across the entire speed range.
The ESC features a built-in Bluetooth module within the power switch, allowing direct connection to the HW LINK App without the need for additional programming devices. Users can conveniently adjust parameters, access data logs and perform firmware updates via smartphone, making setup and maintenance straightforward and efficient.
The ESC incorporates an internal data logging function capable of recording up to 10 minutes of the most recent runtime data. After each run, users can connect via the HW LINK App to review stored data in graphical format. This allows convenient monitoring of key operating parameters and provides a clear overview of both ESC and motor performance.
The ESC features a frameless fan design that enables high airflow discharge from the sides, improving overall cooling efficiency. Combined with an integrated heatsink housing, heat generated during operation is rapidly dissipated. This helps maintain stable operating temperatures, ensuring consistent performance even under demanding conditions.
The ESC is equipped with an intelligent fan control system that automatically adjusts fan operation based on real-time temperature. When temperatures remain low, the fan stays off, and once a preset threshold is reached, it activates automatically. This system helps reduce noise and power consumption while maintaining accurate and efficient thermal management.
The ESC supports adjustable Turbo timing up to 32 degrees. When paired with HOBBYWING EzRun 3652/3665 G3 motors, the system delivers a noticeable Turbo effect, with maximum RPM increased by up to approximately 25%. This provides enhanced top-end performance while maintaining controlled power delivery. Note: Turbo function cannot be enabled for non-Hobbywing motors.
Rated to IP67 standards, the ESC offers strong resistance against water and dust particles. This level of protection allows reliable operation in a wide range of weather conditions and demanding environments.
The ESC features built-in capacitor overheat protection designed to reduce the risk of damage caused by excessive load conditions. By preventing potential capacitor failure, the system adds an additional layer of safety and helps protect the ESC from severe damage.
The ESC offers two convenient methods for parameter adjustment. Users can connect wirelessly via Bluetooth using the HW LINK smartphone app, or with a LCD programming box. These options provide flexibility across different usage scenarios, allowing drivers to tune the system according to their personal preference.
FEATURES:
- Adjustable BEC output of 6V, 7.4V or 8.4V at 5A in switch mode
- IP67-rated water and dust resistance for the ESC and motor
- Temperature-controlled fan with side exhaust
- Four-pole motor rotor for torque and acceleration
- Overheat protection for the capacitors
- Protection against undervoltage, overheating and signal loss
- Internal data logging through the HW-LINK app
- Programming support through Bluetooth, an LCD programmer box and an OTA module
SPECIFICATIONS:
- ESC current: 80A continuous and 520A peak
- ESC input voltage: 2–3S LiPo
- ESC dimensions: 53 x 39.5 x 37.2mm
- ESC weight: 125g including cables and connectors
- Motor: 3652SD G3 brushless, sensored, four-pole design
- Motor rating: 5400kV in the supplied manufacturer specification; the product name identifies it as 4500Kv
- Motor dimensions: 53mm long and 37mm diameter, with a 3.175mm shaft
- Motor weight: 227g
INCLUDES:
- (1) EZRUN MAX10 G2S ESC (80A) w/ XT60 power plug
- (1) EZRUN 3652 G3 Sensored brushless Motor
- (1) Supportive accessories (double side tape, etc)
