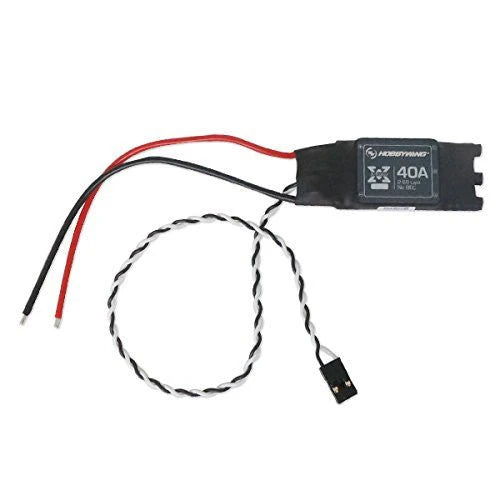

HOBBYWING 30901001 XRotor-40A Multirotor ESC

XRotor-40A Multirotor ESC

FEATURES:

• Special Core program for Multi-Rotor Controllers that greatly improves throttle response.
• Specially optimized software for excellent compatibility with disc-type motors.
• All settings except the "Timing" are preset, making usage simple, highly intelligent and adaptive.
• The twisted-pair design of the throttle signal cable effectively reduces the crosstalk produced in signal transmission and makes flight more stable.
• Compatible with various flight-control systems and supports a signal frequency of up to 621Hz (Note: all throttle signals over 500Hz are non-standard signals) .
• Special drive chip has much better MOSFET driving effect than common driving circuit consisted of discrete components.
• MOSFET with extra-low resistance brings high performance and great current endurance.

SPECIFICATIONS:

• Cont./Peak Current: 40A /60A
• Multi-copter Applicable: 50/650 Class Quadcopter
• Input: 2-6S Lipo
• BEC Type / BEC Output: NO
• Programming item: Timing (High/Intermediate).
• Size / Weight: 68 x 25 x 8.7mm x 26g (0.92oz)
