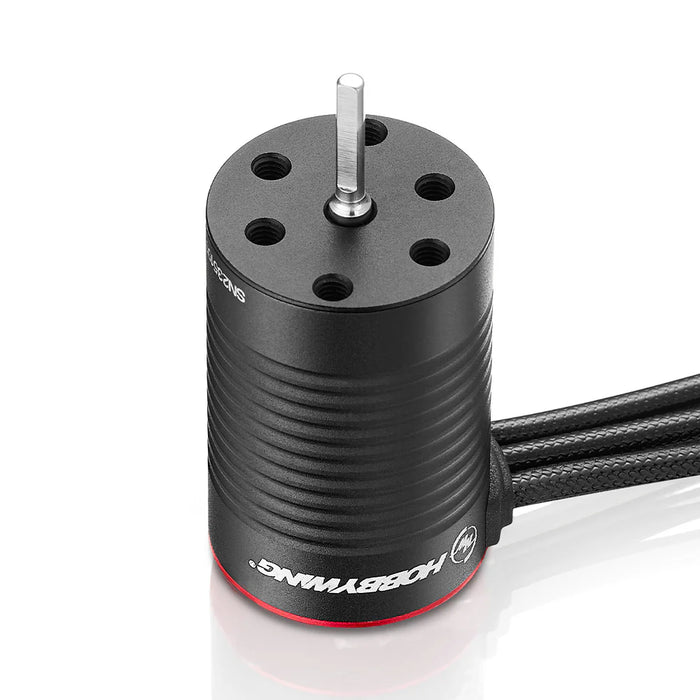

HOBBYWING 30404800 QuicRun 2030 SL G2 5000KV Brushless Motor with 2mm Shaft

QuicRun 2030 SL G2 5000KV Brushless Motor with 2mm Shaft

FEATURES:

• Enhanced Efficiency, Lower Temperature: Compared to the EzRun 2030 motor, this motor achieves over 6% increased maximum efficiency and can reduce maximum temperature by approximately 20% under equivalent load conditions.
• Higher Speed Limit Support: With an integrated magnetic ring structure strengthening the rotor, our motor supports a speed limit up to 65000RPM, a 4% increase over the EzRun 2030.
• Higher Speed Limit Support: With an integrated magnetic ring structure strengthening the rotor, our motor supports a speed limit up to 65000RPM, a 4% increase over the EzRun 2030
• Upgraded Durability: Hobbywing selected premium materials including 0.2mm thick silicon steel sheets, high-strength explosion-proof rotors, high-temperature resistant enameled wire, and high-precision bearings to ensure long-lasting performance.
• Gold-Plated Plug-and-Play Connectivity: Motor output wires feature 24k gold-plated 3.5mm plugs for easy, high-quality connectivity, enhancing user experience.
• Versatile Application: With three KV values to choose from, this motor suits various 1/8th scale vehicles including on-road, off-road, short course trucks, regular trucks, and monster trucks.

SPECIFICATIONS:

• KV: 5000KV | 6500KV | 7800KV
• Dia/Length: φ=24mm(0.94") L=36mm(1.42")
• Shaft Dia / Length: φ=2mm(0.08") L=12mm(0.47")
• Bearing size: D8*D3*T4
• Pole: 2
• Applications: 1/16&1/18 On-road, Off-road
