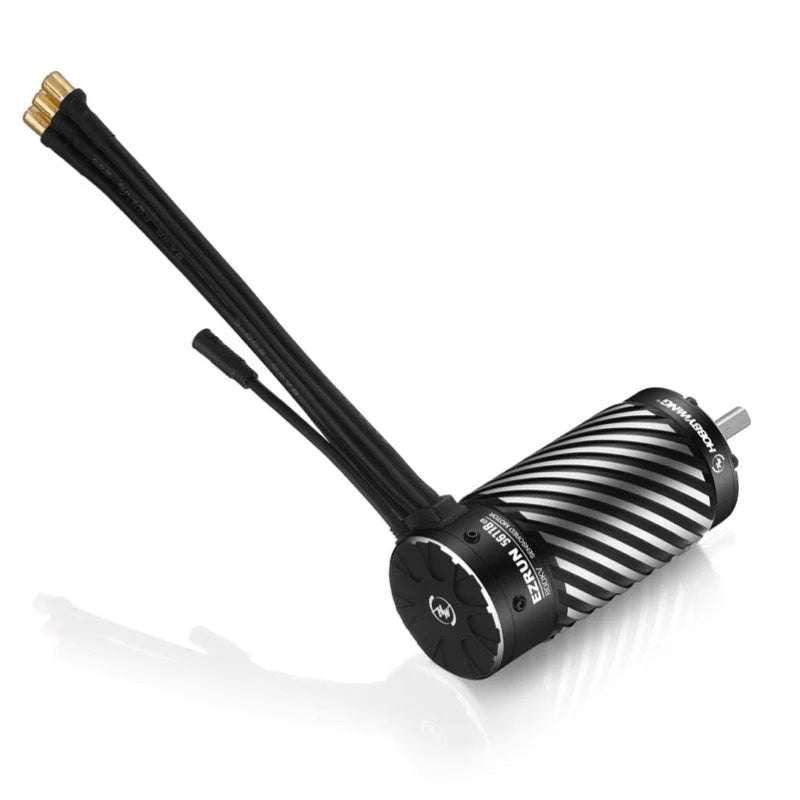

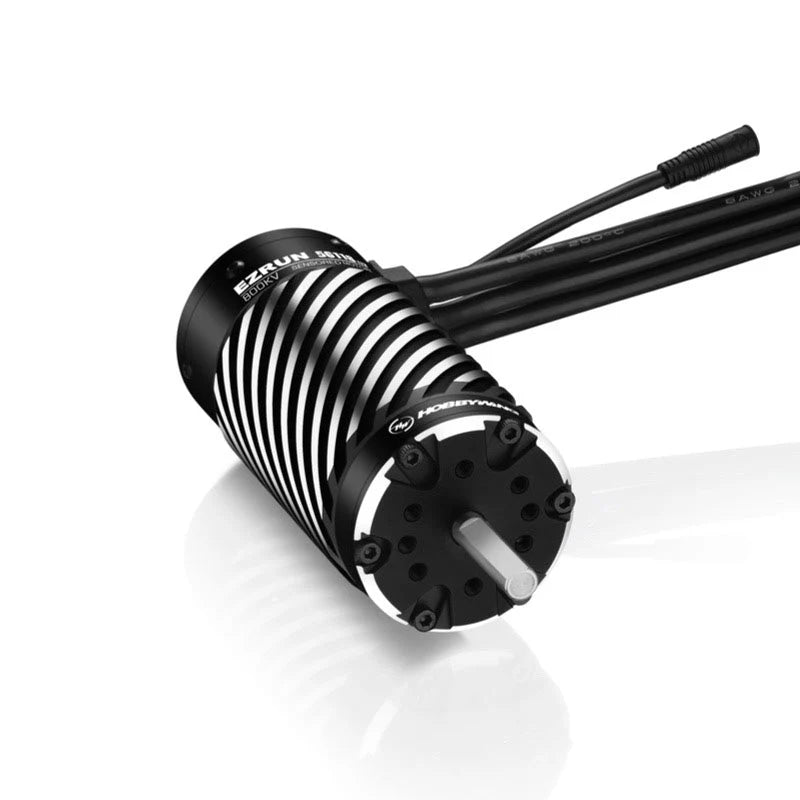

HOBBYWING 30402901 EzRun 56118 SD G2 800KV Sensored Brushless Motor with 8mm Shaft

EzRun 56118 SD G2 800KV Sensored Brushless Motor with 8mm Shaft

FEATURES:

• Compared with the previous generation, it has added a waterproof sensor cable, upgraded to a sensored system, with better accelerate linearity and stronger explosive force.
• It has perfect compatibility when it is matched with Hobbywing EZRUN MAX5 G2 ESC, the esc can automatically recognize this motor, and build a power system with full sensor mode, providing better control performance and more delicate control feel, and also realizing the motor overheat protection function.
• The independent high-precision encoder always outputs pure rotor position signal, which effectively avoids the interference of sensor signal and makes the motor work stably in sensor state.
• CNC machined aluminum housing, high purity copper windings, high strength explosion-proof rotor, ultrathin silicon steel laminations, high-quality stainless steel output shaft, high-precision bearing for high durability and smoothness.
• The innovative sensor interface and rubber cover bearing have better waterproof and dustproof effect than the traditional sensor motor.

SPECIFICATIONS:

• LiPos: 8-12S
• No-Load Current: 6.9A
• Diameter/Length: 56mm (2.20"); L: 119.2mm (4.69")
• Shaft Diameter/Length: 8mm (0.31"); L: 30mm (1.18")
• Bearing Size (mm): Front: D22*D8*T7; Rear: D19*D8*T6
• Poles: 4
• Weight: 1277g
• Applications: 1/5th Buggy, Truck
