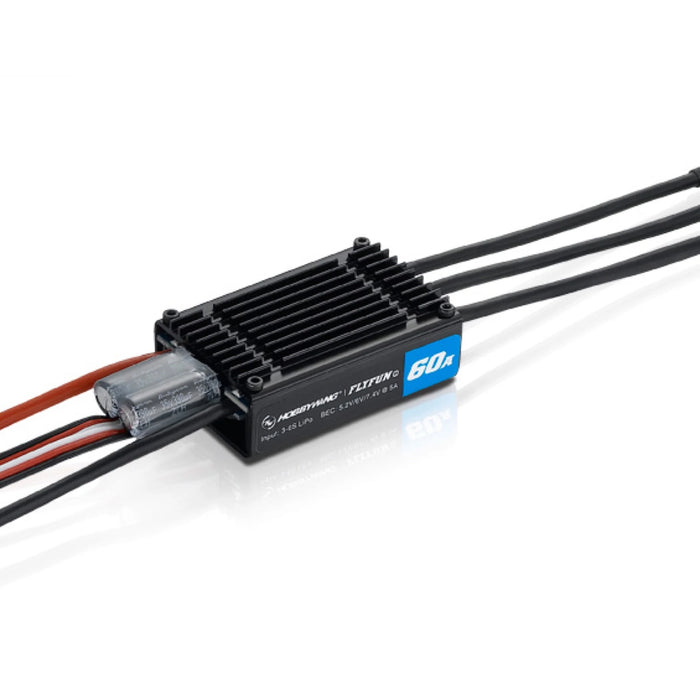

HOBBYWING 30214101 Flyfun 60A V5 3-6S Capable ESC

Flyfun 60A V5 3-6S Capable ESC

FEATURES:

• DEO Technology / Active Freewheeling - The DEO technology (Driving Efficiency Optimization) implemented in the ESC has multiple advantages:
• Rapider and smoother throttle response, better stability and flexibility during flight.
• Higher driving efficiency, longer flight time.
• Lower ESC temperature, more reliable operation.
• Soft Start-ups & Reverse Brake
• High-power switch-mode BEC with continuous/peak current of 8A/20A and voltage adjustable among 5.2V, 6.0V & 7.4V allows users to have more electronic devices or devices with higher power like servo, flight controller, and on-board light on their aircraft.
• Multiple protection features include start-up, over-current, ESC thermal, capacitor thermal, overload, throttle signal loss (or Fail Safe), and abnormal input voltage effectively prolongs the service life of the ESC.
• PWM is 16KHz

SPECIFICATIONS:

• Cont./Peak Current: 60A/80A
• Input: 3-6S LiPo
• BEC: Switch Mode: 5.2V/6V/7.4V, 8A/20A
• Input / Output wire: 14AWG-150mm
• Input Connector: NO
• Output Connector: 4.0mm Gold Connectors (Female)
• Size (mm): 68.8x34.6x18
• Weight (g): 73.5
• Reverse Brake Mode: Supported
