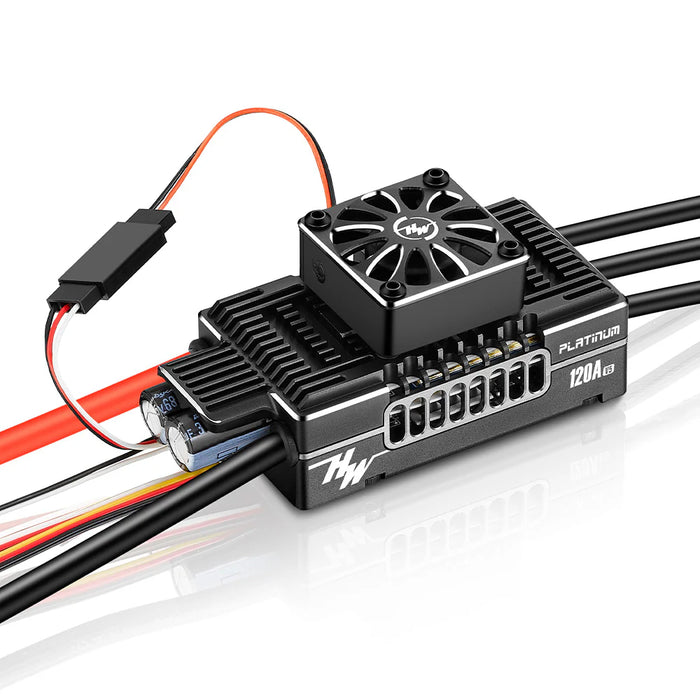

HOBBYWING 30203402 Platinum 120A V5 ESC

Platinum 120A V5 ESC

FEATURES:

• The Platinum V5 series features a new heat sink design that cools with craft airflow, providing both external and internal ESC cooling.
• Built-in 12V Switch BEC with adjustable voltage (5-12V) and 35A max output.
• Supports Mikado VBar System, Futaba S.BUS2, and other data return protocols for remote parameter adjustment and ESC status monitoring.
• Includes DEO technology for faster throttle response, improved flight stability, higher efficiency, longer battery life, and lower ESC temperature.

SPECIFICATIONS:

• Continuous/Peak current: 120A/150A
• Input voltage: 3-85 LiPo battery
• BEC: Switch Mode BEC; output voltage 5-12V adjustable (adjusted 0.1V); output current Cont. 10A, Peak 30A
• Input/Output wires: 1 x black and 1x red 10AWG silicone wires / 3 x black 12AWG silicone wires
• Independent parameter programming interface: Connect LCD program box or OTA module, or to power the cooling fan
• LED light: Display the statuses and fault alerts
• Size/Weight: 83.2*37.1*22.5mm / 150.4g (with wires, No fan)
• Scope of application: 420-520 class electric helicopter (Main blade length 420-520mm), or fixed-wing
