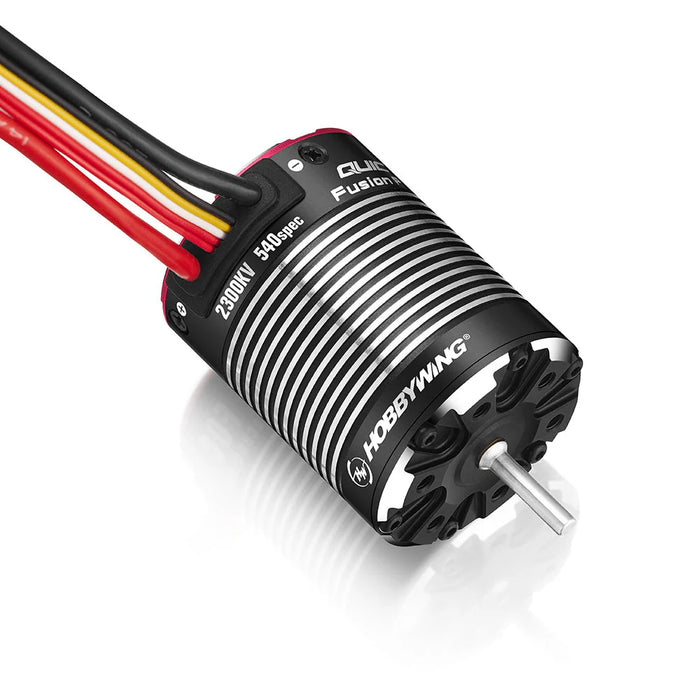

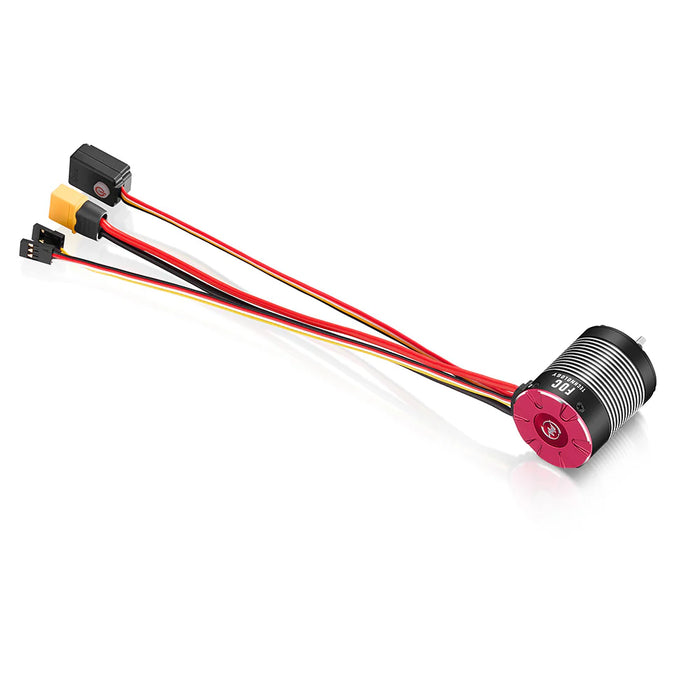

HOBBYWING 30120500 QuicRun Fusion Pro Elite 2in1 2300KV Brushless Crawler Motor ESC

Ultra-Compact Fusion Pro - At just 48.5mm, the 2-in-1 System is 9.5mm shorter than the Pro Standard and 1.3mm shorter than the AXE 540. Designed for a clean, easy fit in nearly all 1/10th scale vehicles.

FEATURES:

• Featuring an ultra-short integrated design with a length of just 48.5 mm, this motor is 9.5 mm shorter than the Pro Standard version and 1.3 mm shorter than the AXE 540. It fits most 10th-scale crawler chassis on the market, allowing for cleaner, more streamlined wiring layouts
• FOC (Field-Oriented Control) Driving Mode: The FOC driving mode enhances the power system of rock crawlers, delivering strong low-speed torque. This provides superior performance compared to standard brushless setups and is even preferred over brushed setups for overall feel
• The system offers high efficiency, reduced heat, and extended runtime, with the motor running quietly and smoothly
• The entire system has an IP67 protection grade, enabling operation in all conditions
• Intelligent torque output and speed closed-loop control ensure precise handling
• Active drag brake force adjustment provides superior holding power on inclines
• The strong built-in switch-mode BEC supports continuous/peak current up to 5A and adjustable voltages of 6V, 7.4V, or 8.4V, capable of driving high-torque and high-voltage servos
• Real-time parameter adjustments are possible using the transmitter’s AUX channel
• Multiple protection functions include battery low-voltage protection, overheat protection, throttle loss protection, and lock-up protection
• The system supports LED and LCD Program Box Pro/G2 for convenient ESC parameter settings

SPECIFICATIONS:

• Continuous / peak current: 50A/150A
• Main applications: 1/10 Crawler
• LiPo/NiMH Cells: 2-4S LiPo, 6-12 Cells NiMH
• BEC output: 6V/7.4V/8.4V adjustable, continuous current 5A (Switch mode)
• Size/Weight: 37mm(diameter)x48.5mm(length) / 178.5g (including wires and connectors)
• Programming port: Independent programming port(switch position)
• Motor KV: 2300KV
• Diameter / Length of motor: 37mm / 48.5mm
• Shaft diameter / exposed shaft length: 3.175mm / 16mm
• Motor Poles: 4

INCLUDES:

• 1x FOC motor w/ built-in ESC
• Factory-installed XT60 plug
• 1x Decal and Manual
• 1x Heatshrink kit, double-sided tape, and zip ties
