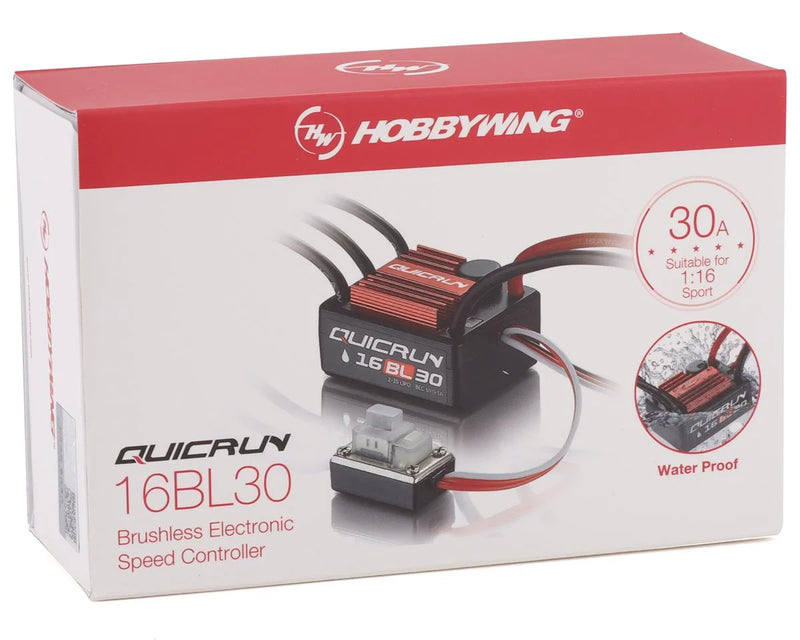

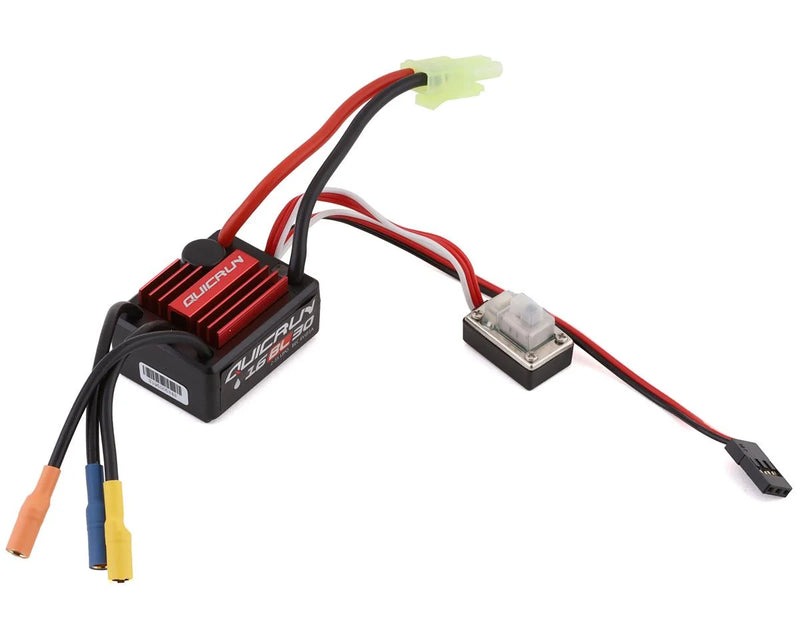

HOBBYWING 30110000 16BL30 QuicRun Brushless Waterproof ESC for 1/16 & 1/18

Hobbywing Quicrun WP-16BL30 Waterproof 1/18th Scale Brushless ESC.

FEATURES:

• Proportional brake with 4 steps of maximum brake force adjustment and 8 steps of drag brake force adjustment
• 9 steps of acceleration (/punch) adjustment from “soft” to “Very aggressive” to fit different kinds of models, tires and tracks
• Multiple protections: Low voltage cut-off protection / Over-heating protection / Throttle signal loss protection / Motor lock-up protection
• One-button (the “SET” button on the ESC) sets the ESC. All parameters easily reset to factory default settings
• Compatible with optional device ---- the portable Digital LED Program Card, especially convenient for outdoor use


SPECIFICATIONS:

• Cont./Peak Current/Resistance: 30A/180A/0.002?
• Motor Type Supported: Sensorless Brushless Motor
• Car Applicable: 1:18 & 1:16 On-road/Off-road/Buggy/Monster
• Motor Limit: 2S LiPo or 6 cell NiMH:
• On-road: 2435-size or smaller motor with the KV<8000
• Off-road/Buggy/Monster: 2435-size or smaller motor with the KV<5000
• Motor Limit: 3S LiPo or 9 cell NiMH:
• On-road: 2435-size or smaller motor with the KV<5500
• Off-road/Buggy/Monster: 2435-size or smaller motor with the KV<3500
• Battery: 4-9 Cell NiMH, 2-3S LiPo
• BEC Output: 6V/1A (Linear Mode)
• Size/ Weight: 36(L)*28(W)*16(H) / 38g
• External Program Port: Not Available
• Fan: No cooling fan
