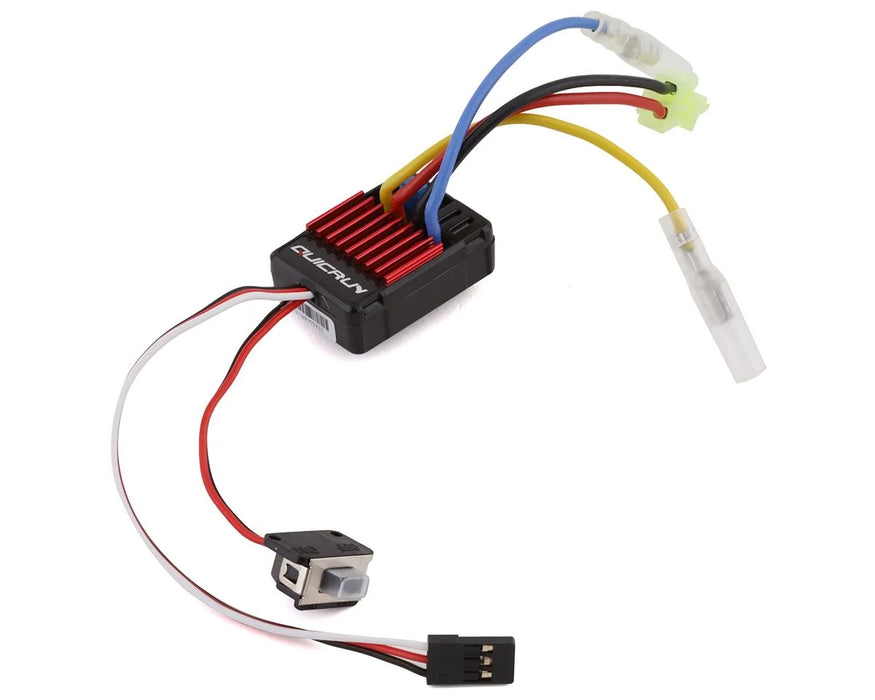

HOBBYWING 30120000 1625 QuicRun Brushed Waterproof ESC for 1/16 & 1/18

1625 QuicRun Brushed Waterproof ESC for 1/16 & 1/18

FEATURES:

• Waterproof and dustproof, suitable for races in all weather conditions
• Small size with built-in capacitor module
• Fwd/Rev/Br running mode fits various vehicles (Fwd =Forward, Br=Brake, Rev=Reverse)
• Great current endurance capability
• Great built-in BEC output capacity
• Automatic throttle range calibration, easy to use
• ESC parameters are easy to set with jumpers
• Multiple protections:
  • Over Voltage Protection
  • Low voltage cut-off protection for battery
  • Over-heating protection
  • Throttle signal loss protection
• Risk Free Manufacturers limited warranty

SPECIFICATIONS:

• Cont. Current /Peak Current/ Resistance: 25A/100A/0.003
• Motor Type Supported: Brushed Motor
• Car Applicable: 1:16 &1:18 On-road/Off-road/Buggy/Monster
• Suitable Battery: 2-3S LiPo, 6-9 cell NiMH
• Brushed Motor Limit:
• 2S LiPo or 6 cell NiMH: 280, 370 or 380 Size Motor RPM<30000 @7.2V
• 3S LiPo or 9 cell NiMH: 280, 370 or 380 Size Motor RPM<20000 @7.2V
• BEC Output: 1A/5V (Linear Mode)
• PWM Frequency: 1KHz
• Size/ Weight: 34(L)*24(W)*14(H) / 23.5g
• Running Modes: Forward/Reverse/Brake
