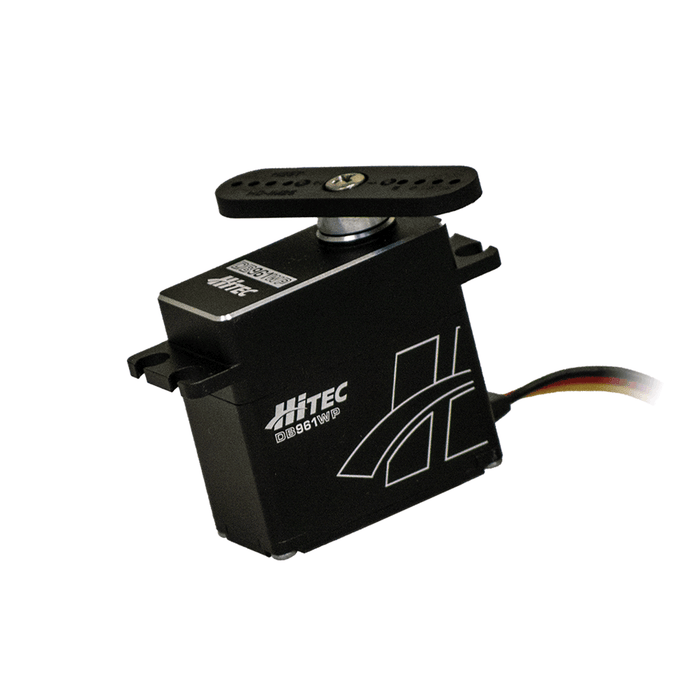

HiTEC 36961S DB961WP Ultra-Premium Brushless Hardened Steel Gear Waterproof Servo

Now more than ever, today’s competition quality off-road vehicles and giant scale aircraft demand uncompromised quality and performance in the never-ending race for gold. The Ultra-Premium DB961WP answers that call for increased durability, providing the Pro-Class dependability and reliability you demand, regardless of your mission. Coupling massive torque and high speed with its wide voltage range and high resolution/low deadband circuitry, the DB961WP will deliver your hobby to a new level.

FEATURES:

• Voltage Range is 4.0V - 8.4V
• Torque: 763 in./oz. @ 6V & 7.4V
• Optimized for up to 2-Cell LiPo Use
• Ultra-Performance Brushless Motor
• 32-Bit MCU Technology / 4096 Resolution
• High Resolution/Low Deadband Circuitry
• User Programmable Thermal Cutoff
• Full Programmability
• IP67 Waterproof Rating
• Smart Sense Technology for Servo Analytics
• H25T Industry Standard Output Spline
• Next Generation Case Design
  • Machined Aluminum
  • Dual Oversized Bearings
  • Hardened Steel Gear Train
  • 3 Hardened Steel Pins

SPECIFICATIONS:

• Operating Voltage Range (Volts DC): 4.0V ~ 8.4V
• Speed (Second @ 60°): 0.15 @ 7.4V
• Maximum Torque Range oz. / in.: 763.81 @ 7.4V
• Maximum Torque Range kg. / cm.: 55.0 @ 7.4V
• Current Draw at Idle: 35mA @ 7.4V
• No Load Operating Current Draw: 500mA @ 7.4V
• Stall Current Draw: 6,500mA @ 7.4V
• Dead Band Width: 1us
• Dimensions (Inches): 1.58 x 0.79 x 1.54 in.
• Dimensions (Metric): 40.0 x 20.0 x 39.0
• Weight (Ounces): 3.18
• Weight (Gram): 90.0
• Circuit Type: 32bit Programable Digital
• Motor Type: Brushless
• Gear Material: 5 Steel Gears
• Bearing Type: 2 Ball Bearings
• Output Shaft (type / Ømm): H25T
• Case Material: Aluminum
• Dust / Water Resistance: IP67 Rated
• Connector Gauge (AWG) / Strand Count: 20AWG
