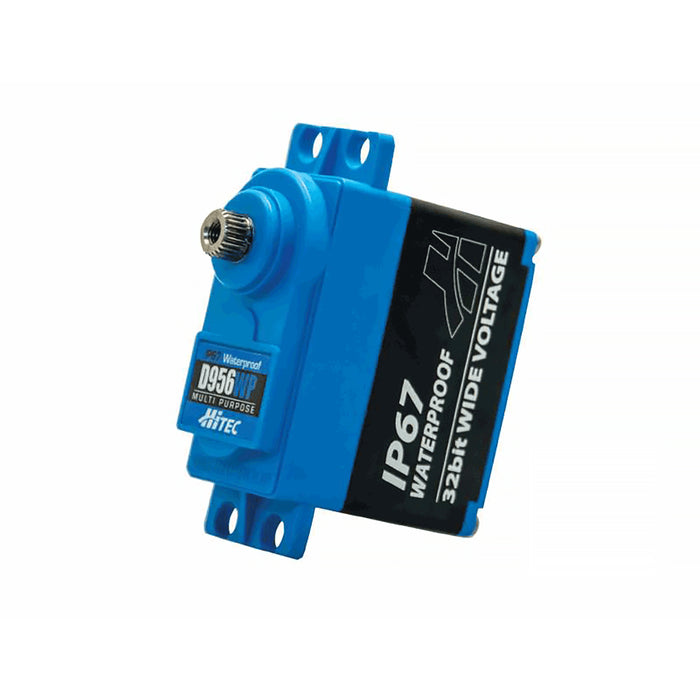

HiTEC 36956 D956WP High Torque Metal Gear Waterproof Servo

Based off the D954SW servo, the D956WP is the IP-67 waterproof upgrade for 1/10th-scale Rock Crawlers and Off-Road Trucks. This technologically-advanced servo is powered by a 32-bit MCU (Microcontroller Unit) and 12-bit ADC (Analog to Digital Converter) industrial science and possess Smart Sense engineering with rapid, high resolution response. The unprecedented programmability and wide-voltage capabilities deliver the most progressive, leading-edge performance for all your radio control needs. With incredibly durable steel gears, dual ball bearing and hardened steel output shaft, the high-end performing D956WP produces the mighty torque and reliability required to take bashers to the next level.

FEATURES:

• Programmable PWM Digital Amplifier
• 32-Bit MCU with 12-Bit ADC Circuitry
• 4096 Resolution
• 1M Cycle Long Life Potentiometer
• Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
• Dual Ball Bearing Supported Output Shaft
• 25-Tooth Output Spline
• Coreless Metal Brush Motors
• Nylon Reinforced Plastic Upper and Lower Case
• Diamond Cut Aluminum Heat Sink Center Case
• Water Resistant and Waterproof Proof Case
• Programmable Functions
  • End Point Adjustments
  • Direction
  • Fail Safe
  • Dead Band
  • Speed (Slower)
  • Soft Start Rate
  • Overload Protection
  • Data Save / Load
  • Program Reset

SPECIFICATIONS:

• Operating Voltage Range (Volts DC): 4.8V ~ 7.4V
• Speed (Second @ 60°): 0.19 ~ 0.12
• Maximum Torque Range oz. / in.: 251 ~ 405
• Maximum Torque Range kg. / cm.: 18.0 ~ 29.0
• Current Draw at Idle: 30 mA
• No Load Operating Current Draw: 500 mA
• Stall Current Draw: 5,200 mA
• Dead Band Width: 1 µs

• Dimensions (Inches): 1.57 x 0.78 x 1.46
• Dimensions (Metric): 40.0 x 20.0 x 37.0
• Weight (Ounces): 2.40
• Weight (Gram): 68.0
• Circuit Type: 32bit Programable Digital
• Motor Type: Coreless Metal Brush
• Gear Material: MK 1st Gear & 3 Steel Alloy Gears
• Bearing Type: Dual Ball Bearing
• Output Shaft (type / Ømm): H25T
• Case Material: Plastic / Aluminum
• Dust / Water Resistance: IP67 Rating
• Connector Gauge (AWG) / Strand Count: 20 / 8
