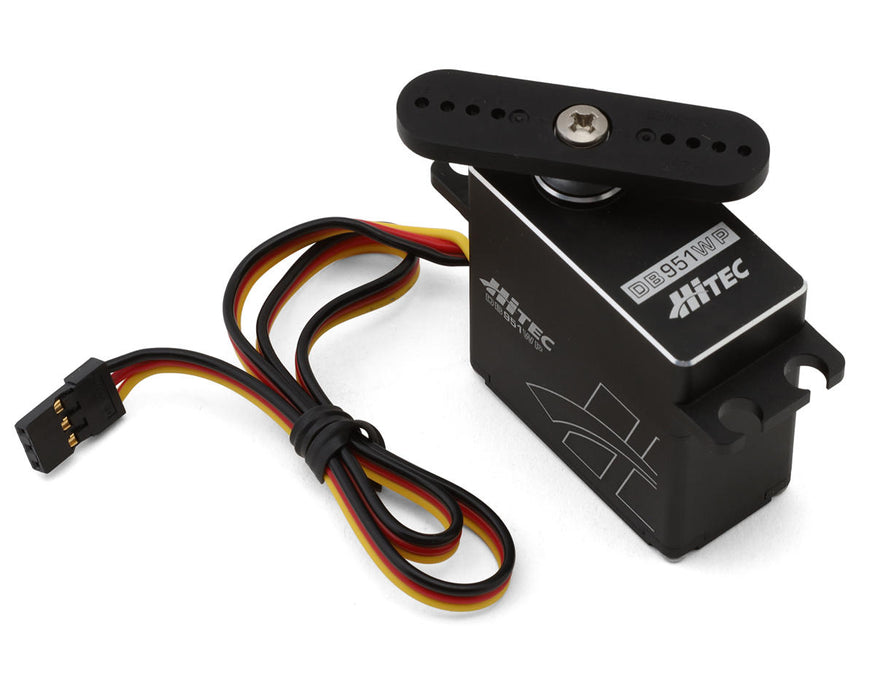

Hitec 36953S DB951WP High Speed Waterproof Brushless Servo (High Voltage)
Push your build to the limit with the Hitec DB951WP High Speed Waterproof Brushless Servo — engineered for relentless speed, razor-sharp precision, and all-weather durability. With a powerful brushless motor, advanced 32-bit control, and a rugged waterproof aluminum case, this servo delivers uncompromising performance when it matters most.
The Hitec DB951WP High Speed Waterproof Brushless Servo delivers elite-level performance with a high-efficiency brushless motor, 32-bit MCU technology, and ultra-fine 4096 resolution for lightning-fast response and exceptional accuracy. Its low deadband circuitry ensures precise control, while Smart Sense Technology provides advanced servo analytics. Designed for high-voltage operation from 4.0V to 8.4V and optimized for up to 2S LiPo use, it offers full programmability — including thermal cutoff — making it a powerful, customizable solution for demanding applications.
Built to thrive in extreme conditions, this servo features a fully waterproof IP67-rated, CNC-machined aluminum case that doubles as a heat sink for superior thermal management. Inside, a hardened steel gear train, dual oversized bearings, and reinforced steel pins provide long-lasting durability and smooth operation under heavy loads. Finished with an industry-standard H25T output spline and next-generation case design, the DB951WP is engineered for reliability, strength, and consistent performance in any environment.
FEATURES:
- High-performance brushless motor for fast, smooth operation
- 32-bit MCU with 4096 resolution for precise control
- Fully programmable settings for custom performance tuning
- Smart Sense Technology provides real-time servo analytics
- IP67 waterproof rating for all-weather reliability
- CNC-machined aluminum case improves strength and cooling
- Hardened steel gears for long-lasting durability
- High-voltage capable from 4.0V to 8.4V (2S LiPo ready)
SPECIFICATIONS:
- Application: 1/10-1/8
- Input Voltage: 4.0-8.4V
- Operating Speed @ 6.0V: 0.12 sec/60°
- Operating Speed @ 7.4V: 0.10 sec/60°
- Dynamic Torque @ 6.0V: 563oz-in (40.54Kg-cm)
- Dynamic Torque @ 7.4V: 563oz-in (40.54Kg-cm)
- Gear Material: Metal
- Motor Type: Brushless
- Output Shaft Spline: 25T
- Dimensions: 1.58x0.79x1.54in (40x20x39mm)
- Weight: 3.18oz (90g)
INCLUDES:
- (1) DB951WP High Speed Waterproof Brushless Servo (High Voltage)
- Composite Servo Horns & Accessories
