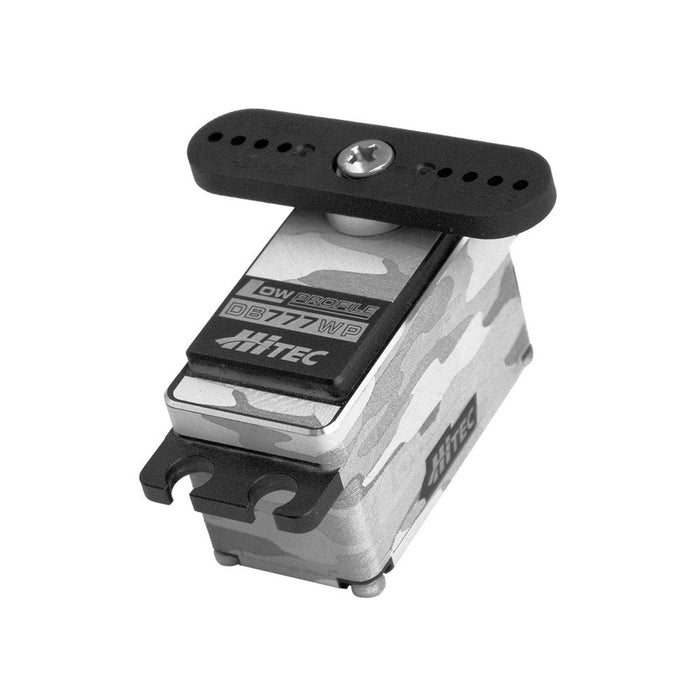

HiTEC 36778S DB777WP Ultra-Premium Hardened Steel Gear Waterproof Servo (Camo Version)

The high-performance, low profile DB777WP is designed with a full metal, IP-67 rated waterproof case, this advanced, programmable servo is HiTEC's fastest, low profile option for 1/10 buggy and touring car drivers. The DB777WP is powered by a 32-bit MCU (Microcontroller Unit) and 12-bit ADC (Analog to Digital Converter), bringing high resolution, rapid response, and patented Smart Sense technology to kick your ride into top gear!

FEATURES:

• Voltage Range is 4.8V - 8.4V
• Full Programmability
• IP-67 Waterproof Rated
• Ultra Efficient Brushless Motor
• 32-Bit MCU Technology / 4096 Resolution
• Smart Sense Technology for Servo Analytics
• High Response, High Resolution Circuitry
• Full Metal Case
• 1M Cycle, Long-Life Potentionmeter
• H25T -Industry Standard Output Spline
• Compatible with Fully Charged 2S LiPo Batteries

SPECIFICATIONS:

• Operating Voltage Range (Volts DC): 6.0V ~ 7.4V
• Speed (Second @ 60°): 0.08 ~ 0.06
• Maximum Torque Range oz. / in.: 111 ~ 153
• Maximum Torque Range kg. / cm.:  8.0 ~ 11.0
• Current Draw at Idle: 35mA / 40mA
• No Load Operating Current Draw: 250mA / 350mA
• Stall Current Draw: 3500mA / 4500mA
• Dead Band Width: 1usec
• Dimensions (Inches): 1.61 x 0.83 x 1.04 in.
• Dimensions (Metric): 41.0 x 21.0 x 26.5
• Weight (Ounces): 2.40
• Weight (Gram): 68.0
• Circuit Type: 32bit Programable Digital
• Motor Type: Brushless
• Gear Material: Metal
• Bearing Type: Brushless
• Output Shaft (type / Ømm): H25T
• Case Material: Aluminum
• Dust / Water Resistance: IP-67 Rated
• Connector Gauge (AWG) / Strand Count: 20AWG / 80
