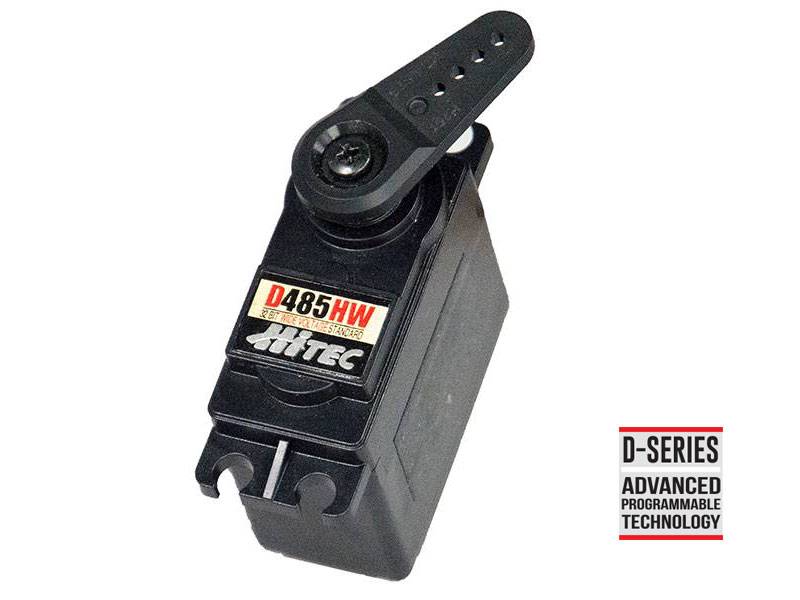

HiTEC 36485 D485HW Wide Voltage Karbonite Gear Servo

Replacing the standard-size HS-5485HB and HS-5495BH servos, the sport class D485HW brings faster response and accuracy to your various radio control needs with D-series high resolution 32-bit technology and wide voltage operation.

Performance Specifications

  • Operating Voltage Range (Volts DC)4.8V ~ 7.4V
  • Speed (Second @ 60°)0.20 ~ 0.15
  • Maximum Torque Range oz. / in.72 ~ 104
  • Maximum Torque Range kg. / cm.4.8 ~ 7.4
  • Current Draw at Idle30 mA
  • No Load Operating Current Draw320mA
  • Stall Current Draw1,500mA
  • Dead Band WidthN / A

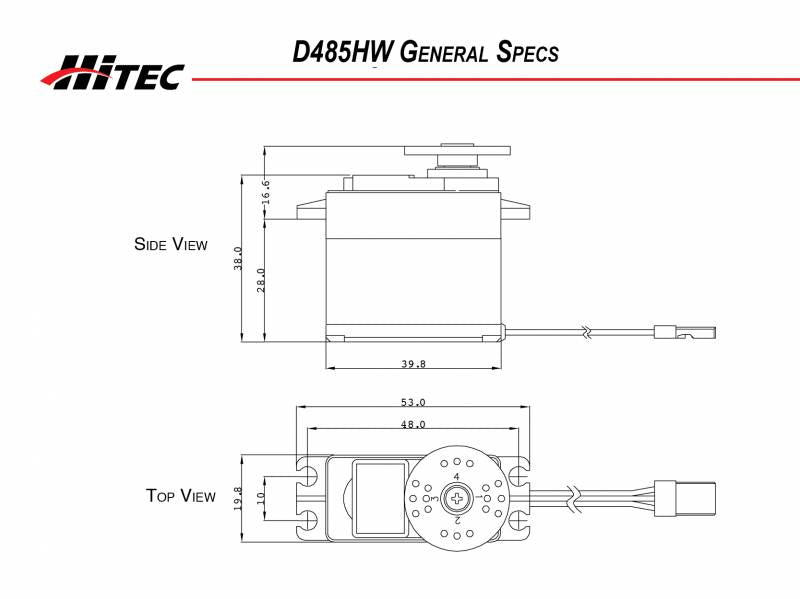

Physical Specifications

  • Dimensions (Inches)1.57 x 0.78 x 1.49
  • Dimensions (Metric)39.8 X 19.8 X 38.0
  • Weight (Ounces)1.59
  • Weight (Gram)45.0
  • Circuit Type32 bit Programable Digital
  • Motor Type3 Pole Cored Carbon Brush
  • Gear MaterialMK 1st Gear & 3 Karbonite
  • Resin Gears
  • Bearing TypeTop Ball Bearing
  • Output Shaft (type / Ømm)25 / 6
  • Case MaterialPlastic
  • Dust / Water ResistanceN / A
  • Connector Gauge (AWG) / Strand CountN / A

Radio Control Applications

  • ParkflyerN / A
  • Sport Plane50 - 64 oz.
  • Sailplane 2 meters and up
  • 3D PerformanceN / A
  • Scale50 - 64 oz
  • Electric HelicopterN / A
  • Gas HelicopterN / A
  • On RoadN / A
  • Monster TruckN / A
  • BuggiesN / A
  • TruggiesN / A
  • Short Course / TruckN / A
  • CrawlersN / A
  • Sail Boat< 1M
  • Power Boat1/10th
