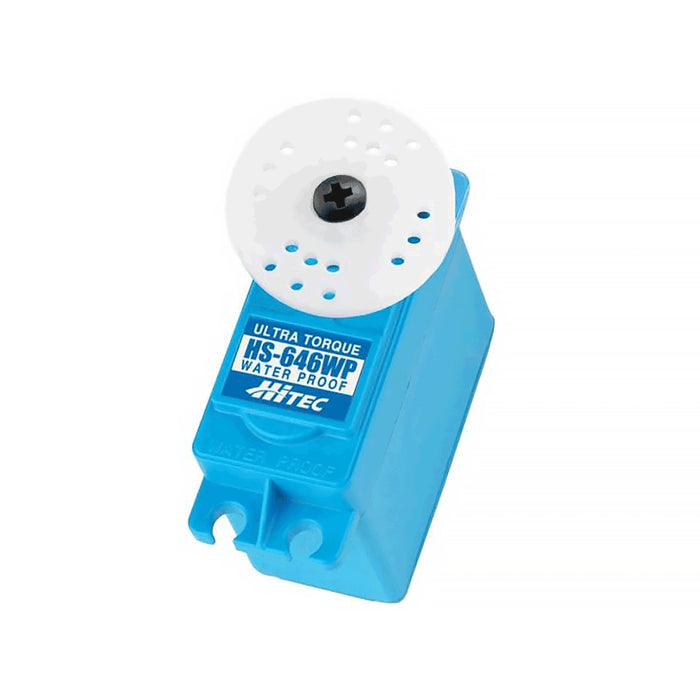

HiTEC 32646W HS-646WP Ultra Torque Metal Gear Waterproof Servo

HS-646WP waterproof servo has what it takes to keep your radio control vehicle, airplane or robot watertight! With high torque, dual ball bearings and metal gears, HiTEC analog waterproof servos have the industry’s first IP67* rating ranking them among the most durable and reliable servos for wet conditions. Whether you are manning your power boat, bashing in the mud, directing your underwater robot, or water landing your 25% plane, the HS-646WP will dependably keep your mind at ease.

FEATURES:

• Industry's First IP67-Rated Waterproof Case
  * IP = International Protection Code | 6 = Dust Tight | 7 = Immersion up to 1M
• Strong Three-Pole Ferrite Motor
• Metal Gear Train with MP First Gear
• Dual Ball Bearing-Supported Output Shaft
• 7.4v 2-Cell LiPo Capability
• Programmable Circuitry

SPECIFICATIONS:

• Operating Voltage Range (Volts DC): 6.0V ~ 7.4V
• Speed (Second @ 60°): 0.20 ~ 0.17
• Maximum Torque Range oz. / in.: 133 ~ 161
• Maximum Torque Range kg. / cm.: 9.6 ~ 11.6
• Current Draw at Idle: 8 mA
• No Load Operating Current Draw: 600 mA
• Stall Current Draw: 2,200 mA
• Dead Band Width: 4 µs
• Dimensions (Inches): 1.65 x 0.83 x 1.57
• Dimensions (Metric): 41.8 x 21.0 x 40.0
• Weight (Ounces): 2.12
• Weight (Gram): 60.0
• Circuit Type: HT7003 WP Analog
• Motor Type: 3 Pole Metal Brush Ferrite
• Gear Material: Metal
• Bearing Type: Dual Ball Bearing
• Output Shaft (type / Ømm): Standard 24
• Case Material: Plastic
• Dust / Water Resistance: IP 67
• Connector Gauge (AWG) / Strand Count: 22 / 60
