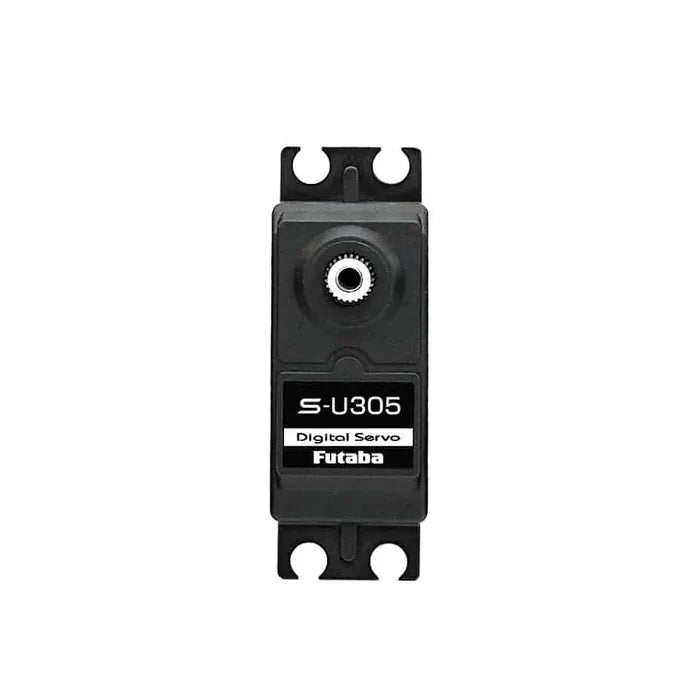

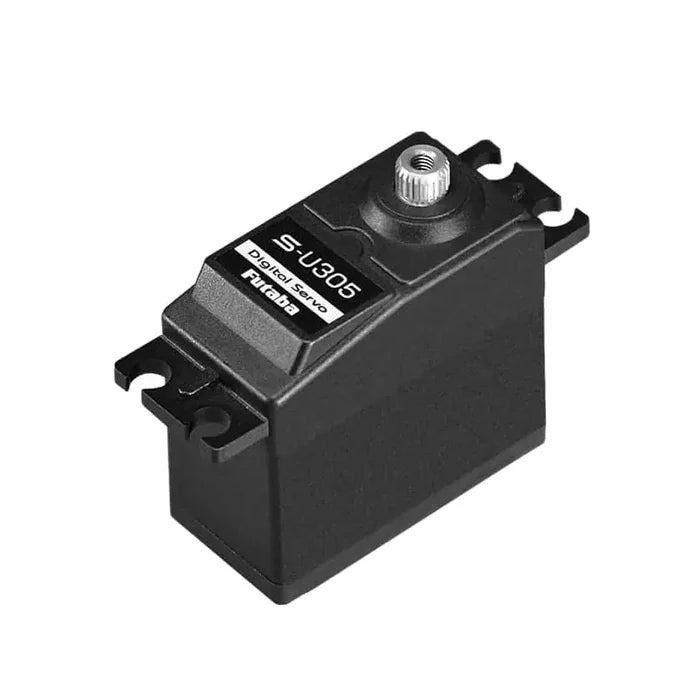

Futaba S-U305 Standard Digital Airplane/Car Servo (No S.BUS)

Heavy Duty Metal Gears Servo (01102376-3), S3305 replacement (01102253-3).

SPECIFICATIONS:

• SPEED:
  • 0.18 sec/60deg at 6.0V
  • 0.23 sec/60deg at 4.8V
• TORQUE:
  • 8.9 kgf/cm at 6.0V, 123.6 ozf/in at 6.0V
  • 7.1 kgf/cm at 4.8V, 98.6 ozf/in at 4.8V
• SIZE:40 mm x 20 mm x 38.1 mm (1.57 in x 0.79 in x 1.50 in)
• WEIGHT: 46.5 g (1.64 oz)

NOTES:

• NO DRY BATTERY USE
• NO SBUS
• DO NOT LEAVE SERVO STALLED, Stall may cause printed circuit board to burn
