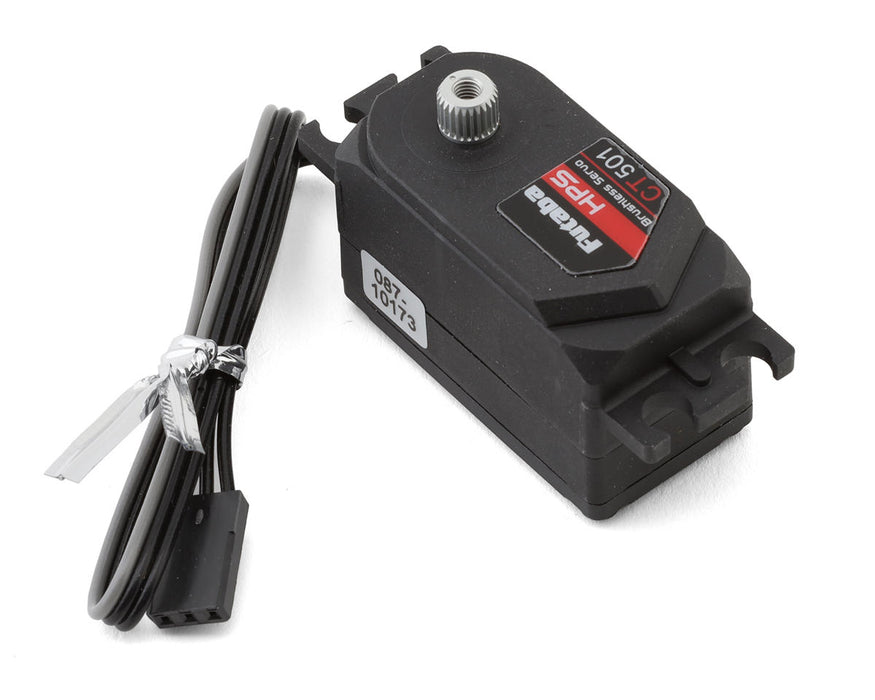

Futaba HPS-CT501 (No BEC S.Bus2 / Brushless) Servo

Designed for 1/10 On-Road and drift applications in need of a high-quality low profile lightweight brushless servo with big servo speed and torque specs! Features a high input voltage capable and all-metal gear design with a durable composite case, this HPS-CT501 is capable of putting out 291.6 oz-in of torque at a speed of 0.06 sec/60° while operating at 7.4 Volts! In addition, the HPS-CT501 is programmable and compatible with S.Bus and S.Bus2 systems! Get this HPS-CT501 servo for your 1/10 scale on-road and drift cars and experience the enhanced performance, speed and durability this servo can offer.

FEATURES:

• Low Profile design
• Suitable for RC cars drift and 1/10 scale on/off road
• Programmable and compatible with S.Bus and S.Bus2 systems
• Powerful Brushless Motor
• Supports SR mode with T7PX/7PXR and UR mode with T10PX
• High voltage capable
• High quality composite case
• No dry battery or BEC use
• Only for RC Cars smaller than 1/5 scale

SPECIFICATIONS:

• Speed:
• @6.0V: 0.07 sec/60°
• @7.4V: 0.06 sec/60°
• Torque:
• @6.0V: 237.5 oz-in (17.1 kg-cm)
• @7.4V: 291.6 oz-in (21 kg-cm)
• Dimensions: 1.59x0.83nx1.06" (40.5x21x26.9mm)
• Weight: 44g
• Motor: Brushless
• Size/Type: Low Profile 1/10 Scale On-Road
• Operating Voltage: 6.0V-7.4V
• Operating Spline: 25T
