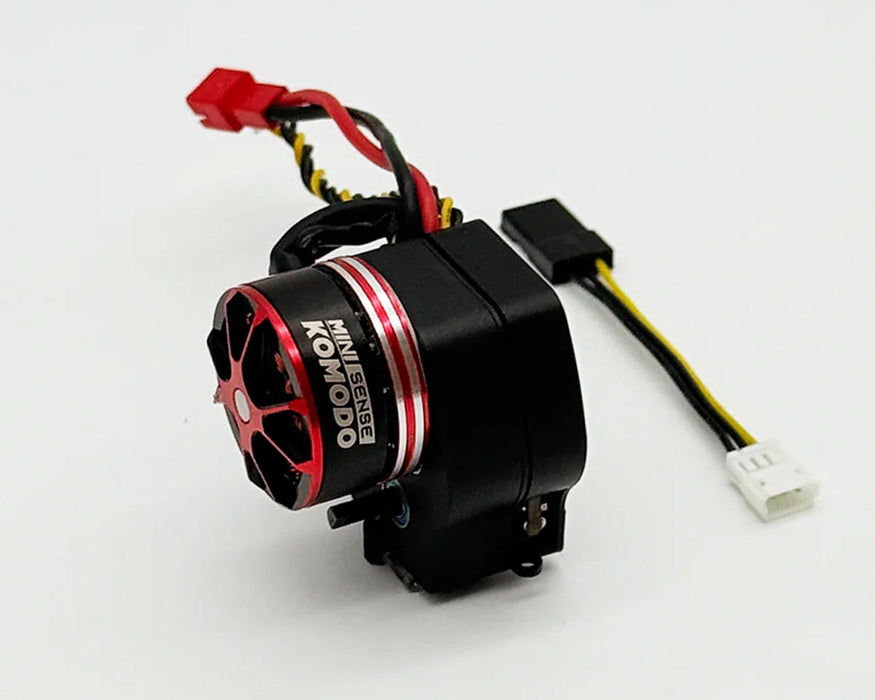

Furitek FUR-2773 Mini Tri-Unity Pro FOC 3-in-1 Sensord Brushless Drive System

The Furitek Mini Tri-Unity Pro Sensored FOC 3-in-1 Drive System is an advanced integrated drivetrain solution engineered specifically for the Axial SCX24 platform. Combining a sensored brushless motor, precision transmission, and FOC ESC into a single compact unit, this system is designed to deliver ultra-smooth throttle response, precise low-speed control, and a significantly cleaner electronics layout compared to traditional multi-component setups.

Developed as a fully integrated system rather than a simple brushless upgrade, the Mini Tri-Unity Pro focuses on maximizing crawling performance through refined power delivery and efficient drivetrain design. By unifying core drivetrain components into one assembly, it reduces wiring complexity, simplifies installation, and improves overall chassis organization—making it ideal for both performance-focused builds and scale-oriented rigs.

At the core of the system is advanced sensored Field-Oriented Control (FOC) technology, which provides near-instant motor feedback for exceptionally smooth startup and throttle modulation. This results in reduced cogging, improved control at extremely low speeds, and more predictable power delivery across technical terrain, giving drivers greater confidence when navigating challenging obstacles.

Designed with real-world crawling performance in mind, the Mini Tri-Unity Pro also emphasizes low-end torque, efficient power transfer, and a compact footprint that helps optimize weight distribution and center of gravity. The integrated architecture eliminates the need for bulky external ESC mounting while maintaining high-performance output, making it a purpose-built solution for serious micro crawler enthusiasts.

FEATURES:

• Reduced wiring complexity for cleaner setups
• Optimized for the Axial SCX24 platform
• High torque output for technical crawling
• Ultra-smooth low-speed throttle response
• CNC-machined Mini Stellar Transmission for improved gear efficiency
• Built-in High-Power BEC with selectable 5.5V/7.4V output
• Easy installation with included mounting hardware
• Compatible with Furicar mobile tuning app
• World's first outrunner motor with integrated ESC for mini crawlers

SPECIFICATIONS:

• ESC
  • Suggested Application: Micro Rock Crawlers
  • Motor Type: Brushless
  • Input Voltage: 2-3S LiPo (7.4-11.1V)
  • BEC Voltage: 5.5/7.4V (Adjustable)
  • BEC Continuous Current: 5A
  • Battery Connector: PH 2.0
  • Programming: Furicar App
• Motor
  • Suggested Application: Micro Rock Crawlers
  • Type: Brushless
  • Input Voltage: 2-3S LiPo
  • Adjustable Timing: No
  • Connector: 3 Pin

INCLUDES:

• (1) Mini Tri-Unity Pro FOC 3-in-1 Sensord Brushless Drive System
• (1) Pre-Assembled Mini Transmission
• Product Manual
