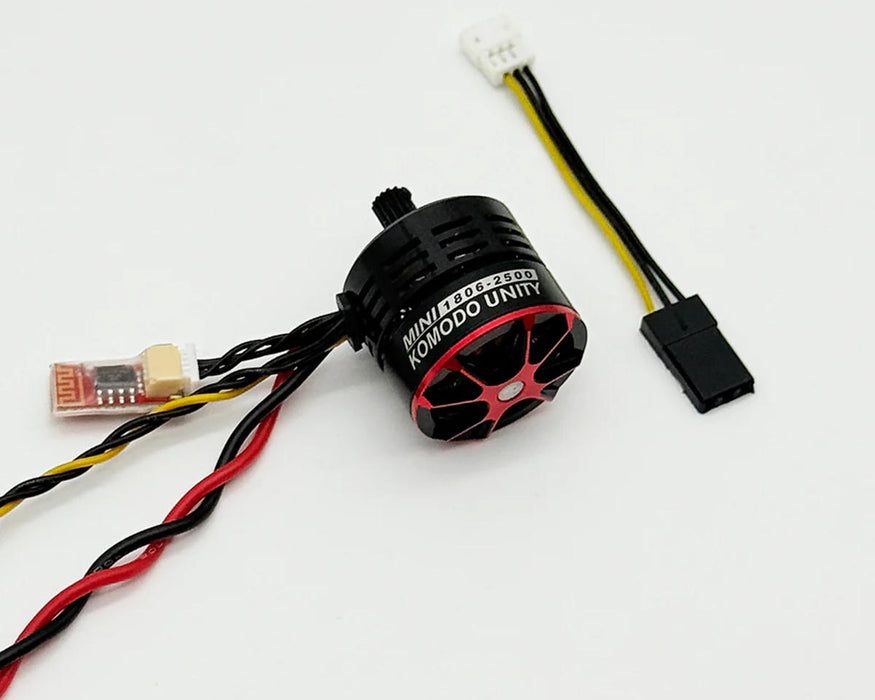

Furitek FUR-2772 Mini Komodo Unity 2-in-1 Micro FOC

The Furitek Mini Komodo Unity Two-in-One Micro FOC Brushless System is an innovative integrated power solution designed for micro rock crawlers. Combining a high-efficiency ESC directly mounted to a 2500kV brushless outrunner motor, this system delivers a compact, low-profile setup with reduced wiring complexity and improved weight distribution. The result is a clean, powerful package that enhances both performance and installation simplicity for demanding crawler builds.

The Mini Komodo Unity eliminates the need for an external ESC by mounting it directly to the motor, streamlining your electronics layout. This dramatically reduces wiring clutter, lightens the load, and reduces wiring clutter and simplifies chassis layout. The clean integration also makes installation easier, allowing builders to focus more on precision and performance.

Featuring advanced Field-Oriented Control (FOC), the system delivers ultra-smooth throttle response across all speeds. It intelligently manages current flow to provide precise low-speed control, making it ideal for delicate crawling and high-traction conditions. FOC also improves efficiency and reduces heat, helping your electronics run cooler and last longer. This technology pairs perfectly with the 2500kV outrunner motor design, known for strong low-speed torque characteristics ideal for crawling applications, making it an essential advantage for precision crawling and low-speed control.

The Mini Komodo Unity features a built-in 5A BEC with selectable 5.5V or 7.4V output, delivering stable power to high-torque servos and accessories without the need for an external BEC. Supporting both 2S and 3S LiPo batteries, it offers flexible power configurations to suit a variety of builds and driving conditions. With a 30A continuous and 50A burst current rating, the system is ready for demanding loads and steep technical climbs. Combined with mobile app compatibility for real-time tuning and lifetime firmware updates, it's engineered for dependable, high-performance crawling in a compact form.

FEATURES:

  • Reduced wiring complexity for cleaner setups
  • Optimized for Furitek TerraX, Terra Comp, Titan Buggy 18, and Titan Buggy 24
  • Compact design enhances chassis airflow
  • High torque output for technical crawling
  • Ultra-smooth low-speed throttle response
  • Efficient power delivery reduces heat buildup
  • Supports high-performance servo configurations
  • Easy installation with included mounting hardware
  • Compatible with Furicar mobile tuning app
  • Outrunner motor with integrated ESC for mini crawlers

SPECIFICATIONS:

  • Diameter: 0.91in (23mm)
  • Length: 0.84in (21.3mm)
  • Weight: 0.88oz (25.1g)
  • ESC
    • Suggested Application: Micro Rock Crawlers
    • Motor Type: Brushless
    • Input Voltage: 2-3S LiPo (7.4-11.1V)
    • Continuous Current: 30A
    • Burst Current: 50A
    • BEC Voltage: 5.5/7.4V (Adjustable)
    • BEC Continuous Current: 5A
    • Motor Connector: 3 Pin
    • Battery Connector: PH 2.0
    • Programming: Furicar App
  • Motor
    • Suggested Application: Micro Rock Crawlers
    • Type: Brushless
    • Turn/kV: 2500kV
    • Input Voltage: 2-3S LiPo
    • Adjustable Timing: No
    • Watts: 160
    • Connector: 3 Pin

INCLUDES:

  • (1) Mini Komodo Unity 2-in-1 Micro FOC Brushless System
  • (1) Power Adapter Cable
  • (1) Furitek Wireless Module
  • (1) 14T Steel Pinion
  • Product Manual
