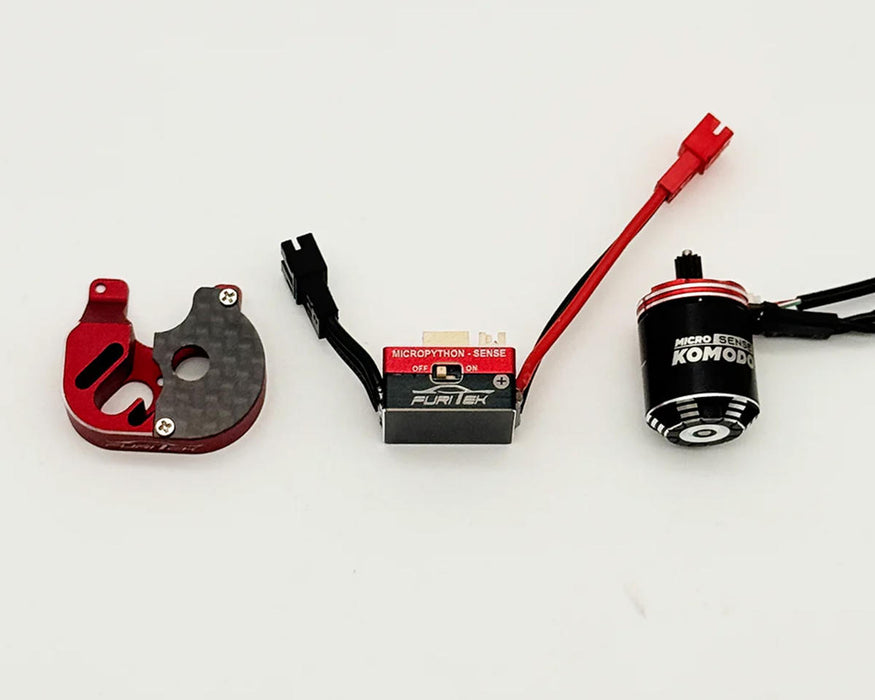

Furitek FUR-2766 SCX24 MicroModo Sensored 2026 Brushless Outrunner Power System

Upgrade your crawler with the Furitek MicroModo Sensored 2026 Brushless Outrunner Power System, designed specifically for the Redcat Ascent- platform. This redesigned MicroModo system delivers true sensored brushless control for exceptional low-speed precision and smooth throttle response.

The MicroModo Sensored system is engineered specifically for the compact chassis. Its ESC and motor are designed to fit within tight installations while maintaining efficient wiring with a clean upward wire layout. This compact design provides an ideal balance of torque, efficiency, and thermal stability for demanding crawler builds.

Unlike typical sensorless systems, the MicroModo 2026 utilizes a true sensored brushless motor that provides real-time rotor position feedback to the ESC. This allows the system to eliminate cogging and deliver precise throttle control from zero RPM. The result is smoother startups, improved throttle resolution, and excellent control during technical crawling situations.

Paired with Furitek's advanced control algorithms, the sensored outrunner motor produces strong torque and extremely smooth low-speed operation. This allows drivers to navigate the trails with greater confidence and precision while maintaining efficient power delivery throughout the throttle range.

FEATURES:

• Designed specifically for the SCX24 crawler platform
• True sensored brushless outrunner motor design
• Eliminates cogging for smooth startup and low-speed control
• Precise throttle modulation for technical crawling
• Compact ESC and motor combination
• Optimized for tight micro crawler chassis layouts
• High-torque brushless performance
• Efficient power delivery across the throttle range
• Ideal upgrade for improved crawling precision

SPECIFICATIONS:

• ESC
  • Suggested Application: SCX24 Micro Crawler
  • Motor Type: Brushless Sensored
  • Input Voltage: 2-3S LiPo
  • Continuous Current: 25A
  • Burst Current: 50A
  • Dimensions (LxWxH): 0.8x0.5x0.3in (22x14x9.8mm)
  • Weight: 7.6oz (7.6g)
  • BEC Voltage: 5.5/7.4V
  • Programming: Furicar App
• Motor
  • Suggested Application: TRX-4M Micro Crawler
  • Type: Sensored Brushless Outrunner
  • Voltage: 2-3S LiPo
  • Adjustable Timing: No

INCLUDES:

• (1) Furitek MicroModo Sensored ESC
• (1) Furitek Sensored 2026 Brushless Outrunner Motor
• (1) Aluminum Motor Mount
