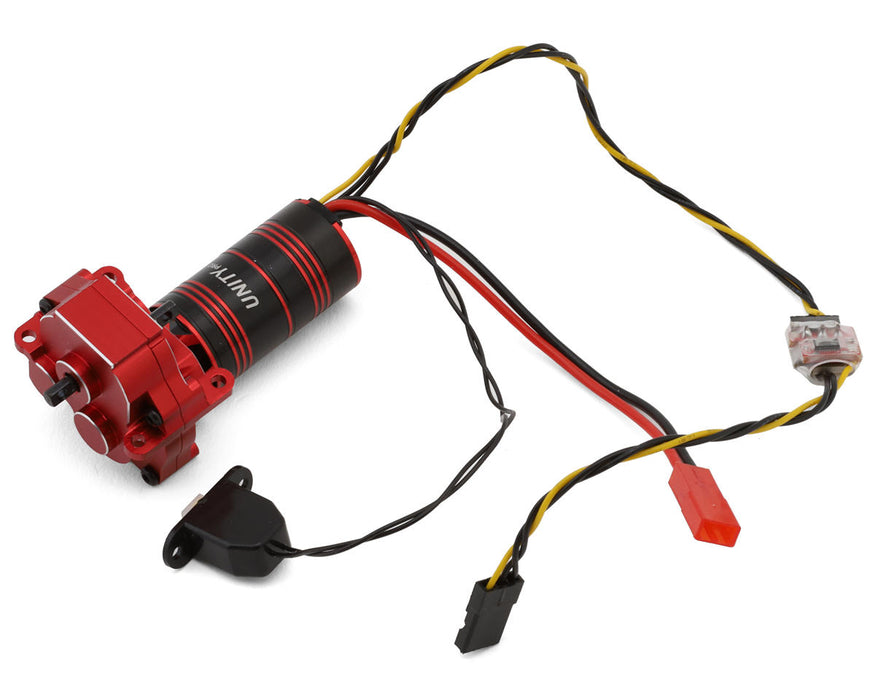

Furitek 2663 Unity PRO CRAWLCORE Waterproof 2-in-1 Brushless ESC & Motor Combo

Unlock the full potential of your TRX-4M with the Furitek CRAWLCORE Waterproof Combo, a high-torque, ultra-smooth brushless upgrade built for extreme crawling, total control, and all-weather performance.

The Furitek Unity PRO CRAWLCORE is a waterproof 2-in-1 brushless system that combines a 3500KV motor with a built-in FOC ESC. Engineered for the TRX-4M, it’s fully sealed against water and dust (IP67 equivalent), making it ideal for extreme conditions. Its compact design simplifies installation with fewer wires, offering a clean, plug-and-play upgrade.

FOC (Field-Oriented Control) technology delivers whisper-quiet operation, minimal cogging, and unmatched low-speed throttle precision, critical for technical crawling. With selectable BEC outputs (5.5V / 7.4V / 8.4V @ 5A), it powers even the hungriest micro servos, while the Furicar app allows on-the-fly tuning, telemetry monitoring, and firmware updates.

Paired with the upgraded MICRO STELLAR 4M Transmission, the combo features CNC-machined aluminum housing and steel gears for durability and brushless compatibility. Its 40.3:1 gear ratio enhances torque and throttle response, giving your TRX-4M unbeatable crawling finesse and reliability right out of the box.

FEATURES:

• 2-in-1 motor and ESC combo
• Fully waterproof and dustproof
• 3500KV brushless motor for power
• FOC tech for smooth throttle
• Adjustable BEC: 5.5V / 7.4V / 8.4V @ 5A
• Works with Furicar app for tuning
• Plug-and-play design for easy install
• CNC aluminum gearbox for strength
• Steel gears for durability and torque
• 40.3:1 gear ratio for crawling control

SPECIFICATIONS:

• ESC:
  • Suggested Application: Micro Rock Crawlers
  • Motor Type: Brushless
  • Input Voltage: 2-3S LiPo (7.4-11.1V)
  • BEC Voltage: 5.5-8.4V (Adjustable)
  • BEC Continuous Current: 5A
  • Motor Connector: 3 Pin
  • Battery Connector: PH 2.0
  • Programming: Furicar App
• Motor:
  • Suggested Application: Micro Rock Crawlers
  • Type: Brushless
  • Turn/kV: 3500kV
  • Input Voltage: 2-3S LiPo
  • Connector: 3 Pin
