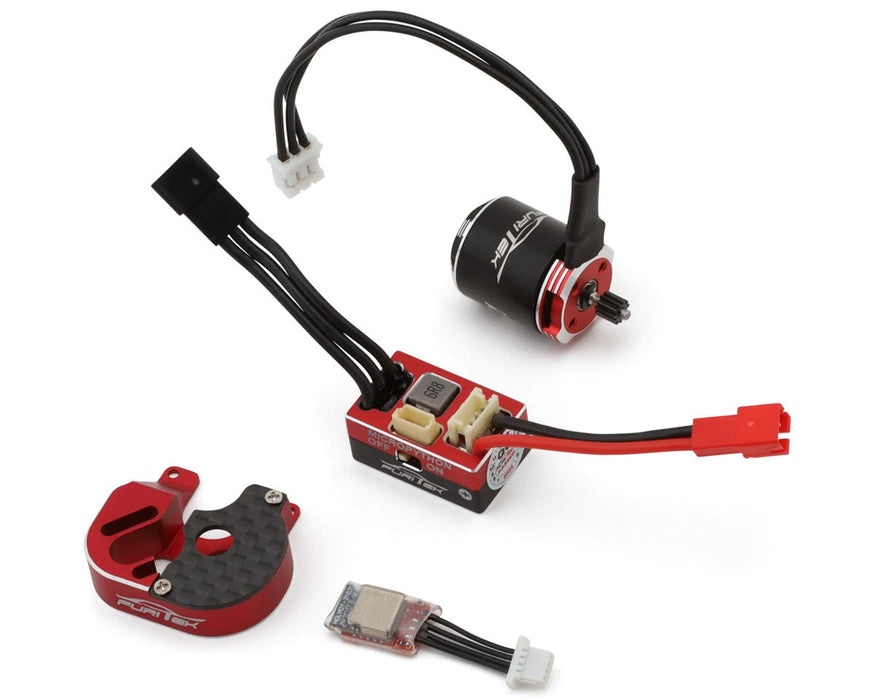

Furitek 2631 MicroModo 2025 Brushless Power System Combo for Axial® SCX24®

Introducing the Furitek MicroModo 2025 Brushless Power System Combo, engineered specifically for the Axial® SCX24®. This innovative combo integrates the revolutionary MicroPython brushless ESC with the high-performance Micro Komodo motor, delivering unmatched power and precision in an ultra-compact package. Designed for off-road and scale RC applications, it offers smooth throttle response, precise control, and robust durability. Elevate your Axial® SCX24® with a power system that pushes the limits of performance.

Specifically engineered to fit the tight confines of the Axial® SCX24®, this combo features an ultra-compact design that ensures seamless integration and optimal performance. Its streamlined layout maximizes space while providing the reliability needed for challenging terrains.

The MicroPython ESC delivers state-of-the-art FOC control and live tuning via the Furicar app, ensuring ultra-smooth throttle response and precise adjustments. Its built-in "BIG" BEC and CNC aluminum case guarantee consistent performance in most environment.

Featuring a 12-pole hi-torque design and CNC machined aluminum heatsink, the Micro Komodo motor offers exceptional power conversion and efficiency. With precision-balanced rotor and Japanese NMB bearings, it is engineered to deliver maximum performance on rugged trails.

FEATURES:

• Tailored for Axial SCX24®
• Ultra-compact design
• MicroPython ESC with FOC technology
• Live tuning via Furicar app
• Smooth throttle control
• Built-in "BIG" BEC
• 12-pole hi-torque motor
• CNC machined aluminum heatsink
• Japanese NMB bearings

SPECIFICATIONS:

• ESC:
  • Suggested Application: 1/24 Crawler
  • Motor Type: Brushless
  • Input Voltage: 2-3S LiPo (7.4-11.1V)
  • Continuous Current: 25A
  • Burst Current: 50A
  • Dimensions (LxWxH): 0.87x0.55x0.39in (22x14x9.8mm)
  • Weight: 0.27oz (7.6g)
  • BEC Voltage: 5.5-7.4V
  • BEC Peak Current: 5A
  • Motor Connector: 3 Pin
  • Battery Connector: PH 2.0
  • Programming: Furicar App
• Motor:
  • Suggested Application: 1/24 Crawler
  • Size: 3450kV
  • Type: Brushless
  • Voltage: 2-3S LiPo
  • Adjustable Timing: No
  • Watts: 120
  • Connector: 3 Pin
  • Dimensions: 0.61x0.81in (15.5x20.6mm)
  • Shaft Length: 0.24in (6mm)
  • Shaft Diameter: 0.06in (1.5mm)
  • Weight: 0.62oz (17.5g)

INCLUDES:

• (1) MicroPython ESC
• (1) Micro Komodo Brushless Motor
• (1) Wireless Module
• (1) Motor Mount
• (1) Receiver Plug
• (1) User Manual
• Mounting Accessories
