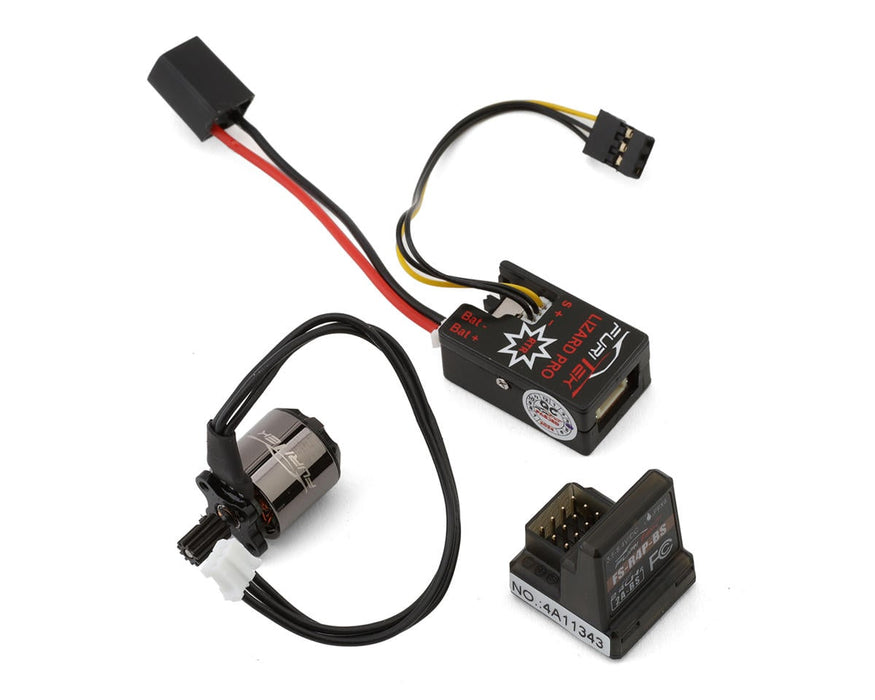

Furitek 2525 Redcat Ascent-18 Starter 2S Brushless ESC Combo

The Furitek Lizard Pro 30A Micro element resistant ESC is a Powerful ESC that delivers huge performance to small scale rock crawlers. Boasting a 30 amp continuous rating, adjustable 5A BEC, up to 3S LiPo support, and built-in wireless module programming capability! This ESC supports both brushed and brushless motors and uses FOC technology to give you a buttery smooth performance on the trail. The Furitek Venom 1212 3450kV 12-Pole hi-torque brushless Outrunner motor is designed to provide a buttery smooth feel at low and high RPM with incredibly high torque that will turn your Ascent-18 into a crawling performance weapon! Designed to be a plug-and-play option for Ascent-18 rock crawlers, this combo is an excellent upgrade if you are looking to bring your Ascent-18 to the next level of high performance!

FEATURES:

• Lizard Pro ESC
• Support Sensorless brushless DC and brushed DC motor (config via the app, default is brushless)
• FOC (Field-oriented control) technology
• Compatible with stock battery
• Built-in wireless
• Built-in switchable BEC
• Built-in switch power
• Super easy programming via App on both Android and IOS
• Lifetime free firmware updates
• Compact and lightweight
• Real-time telemetry up to 10Hz
• Venom Motor
• 12-Pole Outrunner design
• Super thin (0.2mm) stator laminations
• Precision balanced rotor, smoothness for best reliability and maximum RPM.
• Quiet and compact without sacrificing performance
• Extreme quality high temperature copper windings
• High strength steel pinion gear

SPECIFICATIONS:

• ESC:
  • Input Voltage: 2S-3S LiPo
  • Waterproof: No
  • BEC: 5V-6.5V Switchable
  • Current:
    • Continuous: 30A
    • Peak: 50A
  • Dimensions (LxW): 28x15.5mm
  • Weight: (3.5g)
• Motor:
  • Motor Type: Outrunner
  • KV: 3450kV
  • Pole: 12-Pole
  • LiPo: 2S
  • Power: 120W
  • Resistance: 0.16 Ohm
  • No Load Current(@10V): .07A
  • Size (Diameter x Length): 20x15.5mm
  • Weight: (17.5g)
  • Application: Micro Crawler

INCLUDES:

• (1) Lizard Pro 30A Brushless ESC
• (1) Venom 1212 3450kV Brushless Motor
• (1) FlySky 4-Channel Receiver Connector
