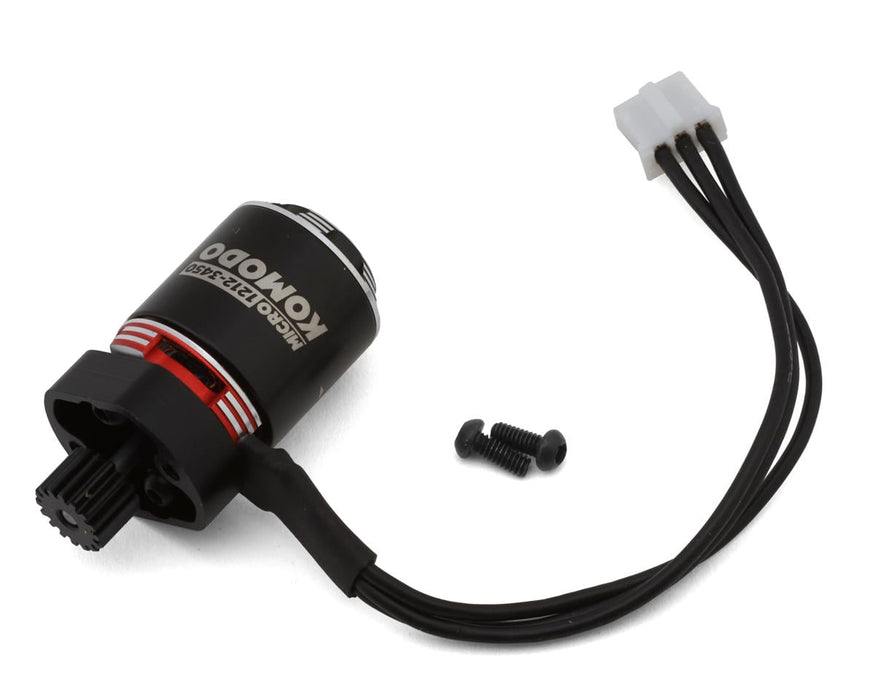

Furitek 2328 FMS FCX24 Micro Komodo 3450kV Brushless Motor with Steel Pinion Gear

The Furitek FMS FCX24 Micro Komodo Brushless Motor is a high torque option for space conscious 1/24 scale builds. Don't let the size of this motor fool you. A 12-pole motor design with a precision balanced rotor allows for extremely low RPM while maintaining maximum torque and efficiency. Package includes one micro motor with pre-installed steel pinion gear.

FEATURES:

• 12 Pole hi-torque motor design
• Super thin (0.2 mm) stator laminations
• Japanese NMB High RPM ABEC5 bearings
• Precision balanced rotor for best reliability and maximum RPM
• CNC machined 6061 T6 billet aluminum heatsink can
• Precision engineered for maximum energy conversion
• High purity and higher temperature single copper windings
• Excellent heat dissipation for maximum efficiency

SPECIFICATIONS:

• kV(RPM/Motor: 3450
• No-load Current: 0.7A @10V
• Watt: 120W
• Input Voltage: 2-3S
• Max Current: 10A
• Slot/Pole: 12
• Motor Size: 15.5x20.6mm
• Shaft Size: 1.5x6mm
• Weight: 17.5g
