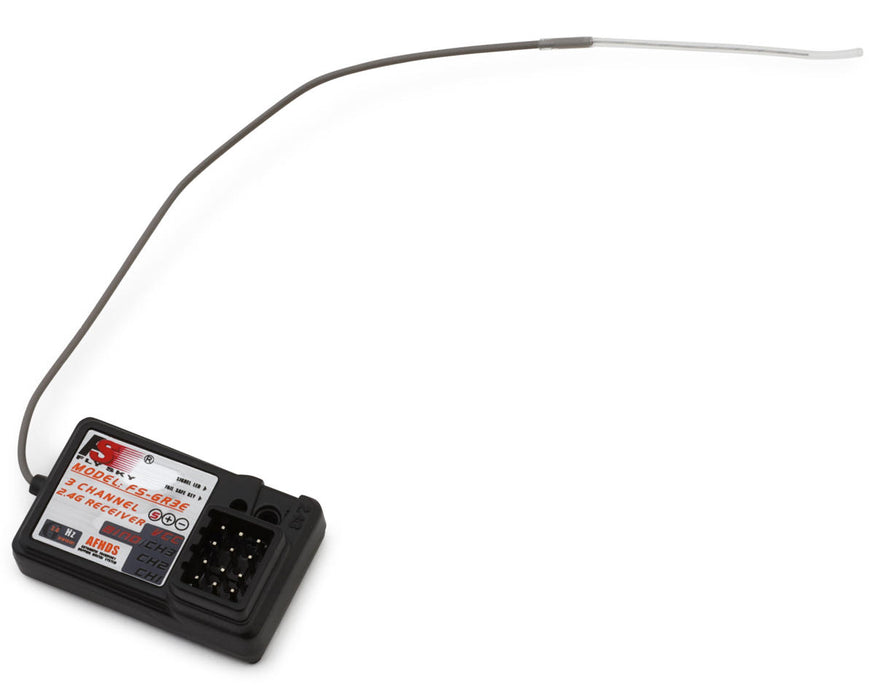

Flysky FS-GR3E 3 Channel AFHDS Receiver
The Flysky 3-Channel AFHDS Receiver is a compact and reliable solution for basic RC applications, offering a solid connection for 3-channel setups. Designed with Flysky’s AFHDS wireless protocol, this receiver provides dependable performance and stable signal transmission for smaller-scale models. Its lightweight, minimal design makes it ideal for users who want to keep things simple and streamlined.
Despite its size, the Flysky 3-Channel AFHDS Receiver delivers stable 2.4GHz signal reception over a ground range of up to 200 meters. The single-antenna design and basic 3-channel PWM output make it ideal for compact models where space and simplicity are priorities. While it doesn’t support telemetry or firmware updates, it remains a dependable option for straightforward control tasks. This receiver is perfect for hobbyists who need a no-frills, easy-to-integrate component for basic RC use.
FEATURES:
- 3-channel PWM output
- Operates on 2.4GHz AFHDS protocol
- Ground range up to 200 meters
- Compact and lightweight at 5g
- 150mm single antenna
- Wide input voltage: 4.0–6.5V
- Basic PWM data port
SPECIFICATIONS:
- Channels: 3
- Frequency: 2.4GHz
- Protocol: AFHDS
- Range: 328-656ft (100-200m)
- Input Power: 4.0-6.5V
- Dimensions: 1.38x0.87x0.47in (35x22x12mm)
- Weight: 0.18oz (5g)
INCLUDES:
- (1) 3-Channel AFHDS Receiver
- (1) Antenna Tube
- (1) Bind Plug
