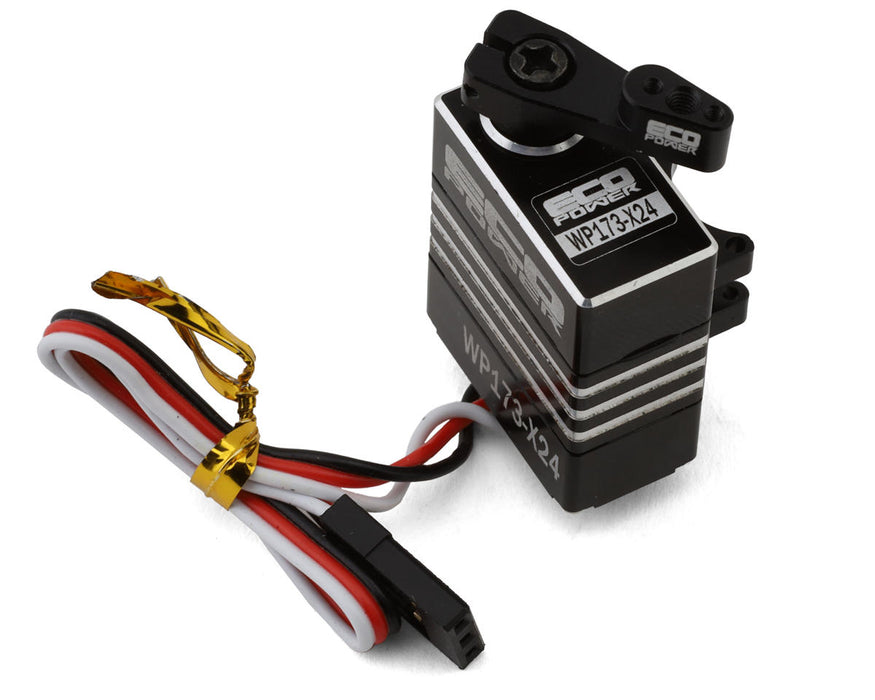

EcoPower 173-X24 WP173-X24 Aluminum Digital Micro Servo Direct Fit For Axial™ SCX24 (HV)

EcoPower is proud to introduce the WP173-X24 Aluminum Digital Micro High-Voltage Servo! The most innovative and powerful micro servo tailored specially for the Axial™ SCX24 platforms as the ultimate performance upgrade!

Unlike all other traditional servos on the market, the EcoPower WP173-X24 micro Servo features a first of its kind innovative built-in direct axle and links mount system that revolutionized the game by allowing the WP173 to be directly mounted to the SCX24 axles with no need for a servo mount! This brilliant mounting system provides a sturdy and rigid fit with extra clearance between the chassis rails!

Whether you are into hardcore Comp rock crawling, backyard crawling or just hitting the trails, a high-torque and speed steering servo will always be at the top of the upgrade list, especially for rigs with heavier tuning weights and wheels! This EcoPower WP173-X24 micro servo is capable of outputting 173oz.in (12.5Kg-cm) of torque and 0.07 sec/60 of speed at 8.4 Volts to turn even the heaviest micro rig wheels smoothly, precisely and with ease!

When it comes to durability and reliability, the EcoPower WP173-X24 micro servo is fitted with all metal heavy-duty gears, an all-aluminum finned case to maximize heat dissipation and an aluminum 25T servo horn to ensure maximum durability and flex-free operation under the harshest conditions! In addition, the EcoPower WP173-X24 is fully elements and waterproof! Allowing you to navigate through wet and dirt-filled trails with peace of mind!

FEATURES:

• The ultimate upgrade for Axial™ SCX24
• Extreme torque and speed levels
• Innovative direct axle mount
• Eliminates the need for separate servo mount
• All CNC-machined aluminum case
• 1-year warranty!
• High voltage capable of operating on up to 8.4 Volts!
• HD all metal gears and output shaft spline
• Waterproof design
• Powerful coreless motor
• Includes a CNC-machined aluminum horn with multiple mounting holes

SPECIFICATIONS:

• Application: 1/24 & 1/18
• Input Voltage: 6V-8.4V
• Speed:
  • @6.0V:: 0.09 sec/60
  • @8.4V:: 0.07 sec/60
• Torque:
  • @6.0V:: 123oz.in (8.9Kg-cm)
  • @8.4V:: 173oz.in (12.5Kg-cm)
• Motor: Digital Coreless
• Output Shaft: Mini 25T
• Gear Material: Metal
• Dimensions (LxWxH): 0.9x0.47x1.25in (23x12x31.75mm)
• Weight: 16g

INCLUDES:

• (1) WP173-X24 Aluminum Digital Micro Servo
• (1) Aluminum Servo Horn
• (2) Composite Servo Horns
