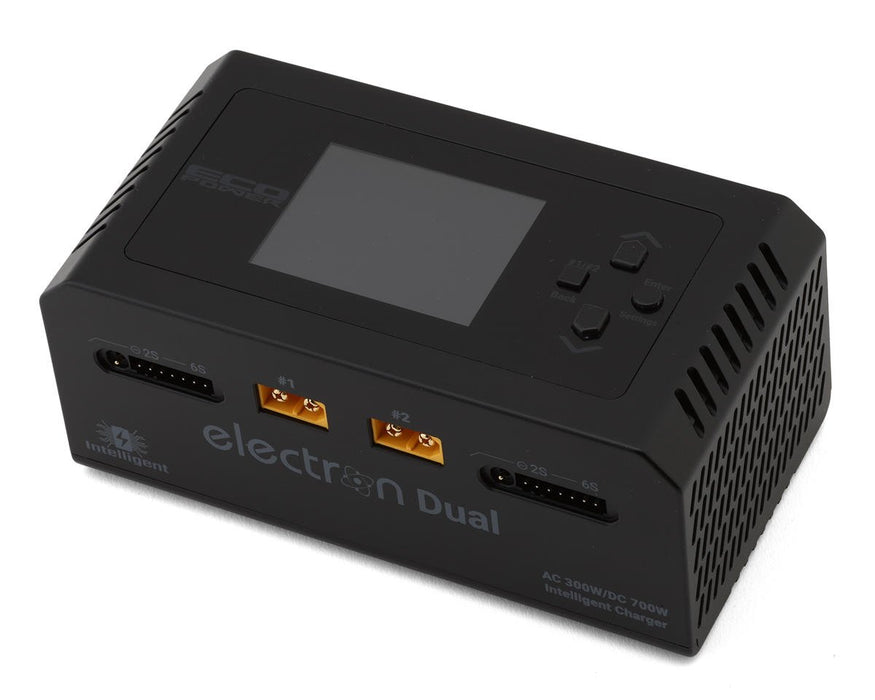

EcoPower 1016 "Electron Dual" Intelligent LiPo/LiHV/LiFe AC/DC Charger

The "Electron Dual" Intelligent LiPo/LiHV/LiFe AC/DC Charger by EcoPower offers a comprehensive charging solution for modern battery needs. Designed with safety, efficiency, and user convenience in mind, it caters to both intelligent and non-intelligent batteries. Equipped with an advanced LCD display and automatic functionality, the charger simplifies the process by identifying ideal charging parameters and monitoring real-time performance. Whether you need to charge, discharge, or balance cells, the Electron Dual ensures optimal performance for every battery type.

The Electron Dual allows you to charge two batteries simultaneously, supporting up to 6S LiPo/LiFe/LiHV batteries at sixteen amps each. For advanced needs, its SyncCharging feature combines both channels to deliver a maximum of twenty-three amps. This functionality ensures that users can power through demanding applications with ease and efficiency. Its high current output can reduce charging times significantly, letting you spend more time using your equipment and less time waiting.

This charger is built with an intelligent smart connector that automatically identifies the best charging parameters for compatible batteries. Its intelligent interface provides detailed insights into battery performance, including capacity, cycles, and remaining charge time. These features enhance the user experience, providing transparency and ensuring the health of your batteries. Additionally, the system adjusts charging settings to prevent overcharging, prolonging battery lifespan. Whether you're monitoring a single cell or an entire pack, the Electron Dual offers precise data to help you manage your power needs effectively.

Safety is paramount with the Electron Dual, which includes a suite of protection features. Over-voltage, over-temperature, short-circuit, and timer protections safeguard your equipment and batteries during operation. The charger's reliable safety systems allow users to charge confidently without the risk of damage or malfunction. Each layer of protection is designed to prevent potential issues before they arise, ensuring a worry-free experience. Whether you're an experienced user or a beginner, the Electron Dual's built-in safeguards make it simple to operate without compromising security or performance.

FEATURES:

• Dual-channel charging capabilities
• SyncCharging delivers up to twenty-three amps
• Supports LiPo, LiHV, and LiFe batteries
• Intelligent smart connector for auto-parameter setup
• LCD display for detailed real-time monitoring
• Compatibility with intelligent and non-intelligent batteries
• Cell balancing and external discharging options
• DigitalPower mode for versatile power output
• Comprehensive safety protection systems
• Displays detailed battery and charger diagnostics

SPECIFICATIONS:

• Input Power: AC/DC
• AC Input Voltage: 100-240V
• DC Input Voltage: 7-30V
• LiPo/LiHV/LiFe Cell Count: 1-6S
• NiMH/NiCd Cell Count: LiPo Only
• Pb Battery Voltage: LiPo Only
• Digital Power Supply: 5-29V
• Input Connector: DC XT60/AC 2-Prong Polarized
• Output Connector: XT60
• AC Charge Power: 300W
• DC Charge Power: 350W (x2)
• Discharge Power: 15W (x2)
• Charge Current: 0.1-16A (x2)
• Discharge Current: 0.1-3A
• Balance Current: 1200mAh/Cell
• Dimensions: 5.71x2.99x2.44in (145x76x62mm)
• Weight: 18.7oz (530g)

INCLUDES:

• (1) EcoPower Electron Dual Intelligent Charger
• (1) AC Power Cord
• (1) USB-A Cable
• (2) XT60 to T-Style Adapters
• (2) XT60 to EC3 Adapters
• (2) XT60 to EC5 Adapters
• (1) Instruction Manual


IMPORTANT LITHIUM POLYMER SAFETY INFORMATION

• DO NOT leave a battery in your model when charging
• DO NOT leave lithium batteries unattended when charging
• ALWAYS balance charge lithium battery
• ALWAYS use a LiPo Safe charging bag/box
• YOU MUST use a Li-Poly specific charger to charge lithium batteries (NiMH or NiCD only chargers WILL NOT WORK!)
• YOU MUST not over discharge lithium battery packs
• READ & UNDERSTAND the instructions carefully before operating this battery

Note: When using high energy Li-Polymer Batteries, please do not over-discharge or over-charge batteries as this will result in overheated batteries. Discharging capacity can't exceed 80% of the max capacity of the pack after full charging to ensure a good cycle performance. It is recommended to fully charge a brand new battery before using and only discharge the battery 50% for the first 5 cycles. Always monitor race time and/or set a low voltage warning on ESC (End voltage cannot be lower than 3.2v per cell). Do not use a battery that has too low a voltage. Do not expose batteries to sunshine or store/charge batteries at temperatures above 35°C or in a closed car. The high-temperature environment could cause damage to the pack or make it burst. If the battery becomes hot while fast charging, high current discharging, or racing, do not charge it until it has cooled completely. Wait about 20 mins, then inspect prior to recharging.
