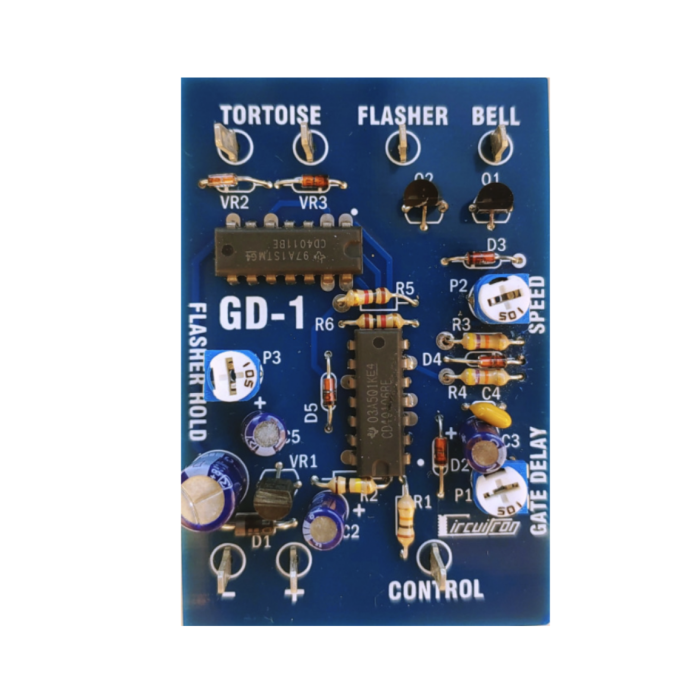

Circuitron 800-5550 GD-1 Gate Driver Circuit

The CIRCUITRON Gate Driver Circuit may be used in conjunction with any of Circuitron Detection Circuits and Alternating Flashers. It is designed to directly drive up to 2 CIRCUITRON Tortoise™ Slow Motion Switch Machines when used as the actuator(s) for Grade Crossing Gates. The speed of motion is fully adjustable. Control of the flasher circuit is handled by the GD-1 and an adjustable timer will hold the flashers ON while the gate rises. The Gate Driver Circuit is mounted on a 2” x 3” printed circuit board and requires 10-18 volts DC.
