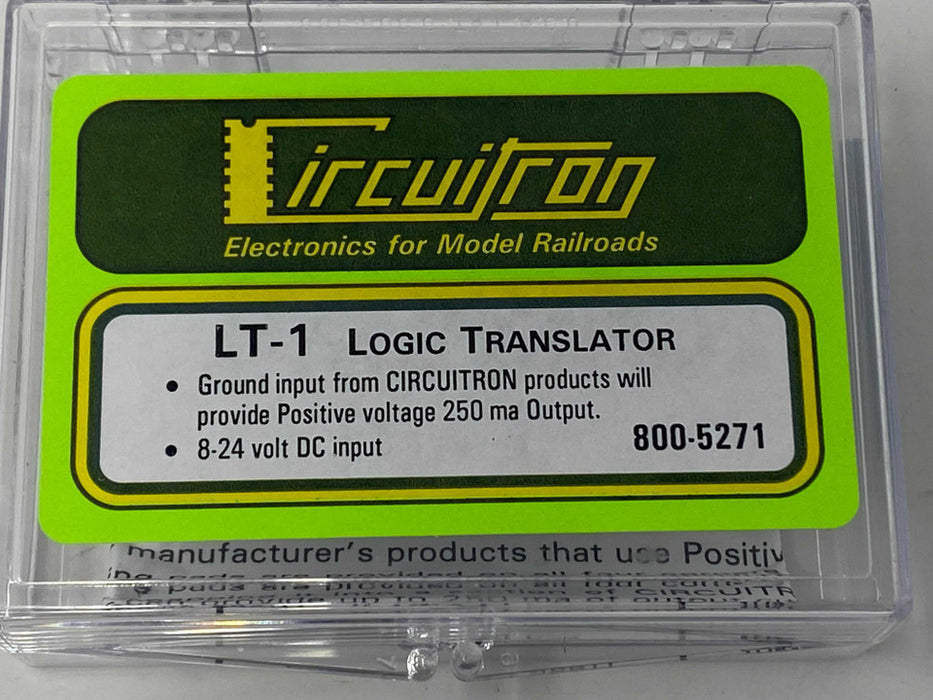

Circuitron 800-5271 LT-1 Positive Logic Translator Interface Circuit

The Circuitron LT-1 and LT-2 are interface circuits that allow Circuitron products to function with other manufacturer’s products that require opposite polarity from Circuitron products. Both boards have 4 independent logic inverter circuits on the one board. Both the LT-1 and the LT-2 are constructed on 1½” x 3” printed circuit boards.

LT-1 — Converts the grounded (-) output of any Circuitron product to a positive voltage. Requires a 6 - 24 volt DC power source for the circuit. The output voltage will be essentially equal to the power supply and the output capacity is up to 250 ma.
