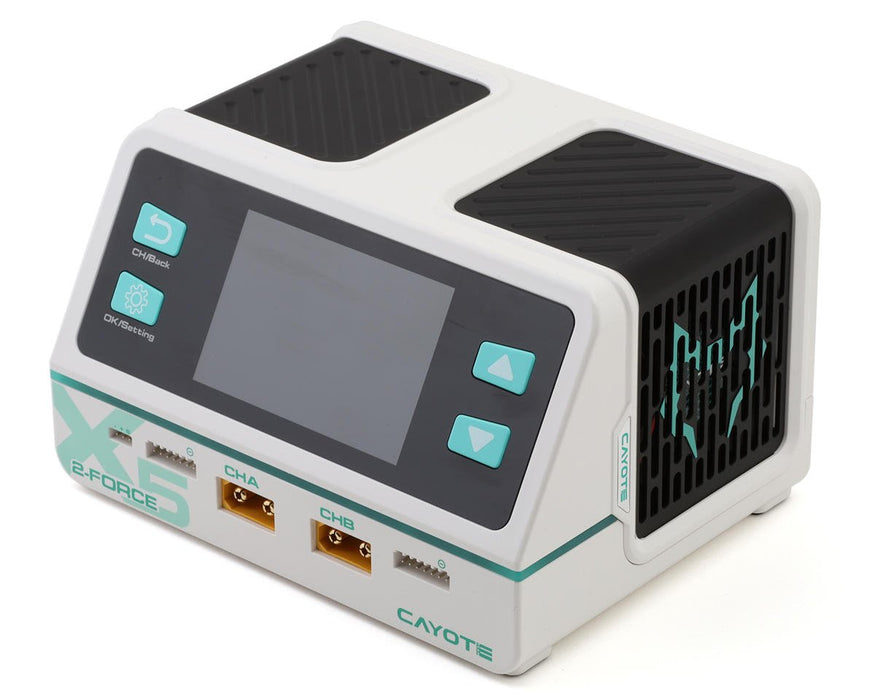

Cayote CYEG1022 2-Force X5 Racing Dual Battery Charger with XT90 Charge Lead
The Cayote 2-Force X5 Racing Dual Battery Charger is a professional-grade dual-channel smart charger built for RC racers who demand speed, efficiency, and reliability. Engineered with high-performance power management, advanced safety protections, and versatile compatibility, this charger is designed to handle everything from pre-race battery activation to on-site multi-task charging.
The 2-Force X5 stands out with its high-gloss coated polymer shell that resists scratches and maintains a sleek, professional look. Compact and portable, it fits easily into your pit area while still packing powerful charging performance. The 3.5-inch sunlight-readable IPS display provides clear visibility in any environment, while the simplified UI and four-button interface make navigation quick and intuitive for both advanced racers and casual users.
Built to meet the demands of modern competition, the 2-Force X5 delivers up to 500W on AC power and 1400W on DC, with a maximum charging current of 55A (in Synchronized mode). Dual independent channels allow simultaneous multi-battery charging, while functions like external discharge, two-in-one charging, and digital power supply offer flexibility for a wide range of applications. With intelligent power balancing and dynamic AC power distribution, this charger ensures optimal battery performance and extended life.
To ensure safe operation, the 2-Force X5 integrates a full suite of protections, including over-voltage, over-current, reverse polarity, short-circuit, and over-temperature safeguards. An intelligent cooling system with large ventilation ports keeps thermal performance stable even during high-power charging. Added features like a servo testing interface, 12V DC multi-function output, and USB-C firmware upgrade capability make this charger not just powerful, but also practical for all your race-day needs.
FEATURES:
- Dual-channel independent charging
- Supports AC 500W / DC 1400W power
- Maximum charging current of 55A
- 3.5-inch sunlight-readable IPS display
- Simplified four-button user interface
- Dynamic AC power distribution
- Wide battery compatibility (LiPo, LiHV, LiFe, NiMH, Li-Ion)
- Built-in 2A cell balancing current
- Comprehensive safety protections
- Servo testing interface and 12V DC output
SPECIFICATIONS:
- Input Power: AC/DC
- Input Voltage: 12-30V DC
- LiPo/LiHV/LiFe Cell Count: 1-6S
- NiMH/NiCd Cell Count: 1-18S
- Input Connector: EC5
- Output Connector: XT90
- Charge Power: 12V/100W
- Discharge Power: 70Wx2
- Charge Current: 40A, 55A Synchronous
- Discharge Current: 8A
- Balance Current: 2A
- Dimensions: 6.78x5.12x3.98in (172x130x101mm)
- Weight: 52.9oz (1500g)
INCLUDES:
- (1) 2-Force X5 Racing Dual Battery Charger
- (1) AC Power Cable
- (2) Color Matching XT90 Charge Leads
- (1) Instruction Manual
