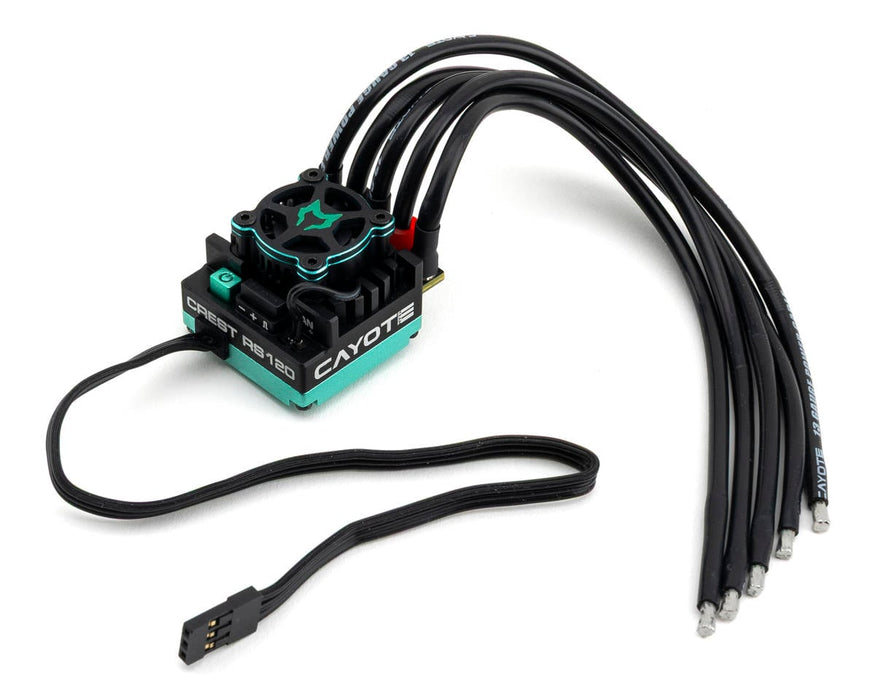

Cayote CYEA11002 Crest RS120 1/10 Stock 120A Sensored Brushless Competition ESC
The Cayote Crest RS120 1/10 Stock 120A Sensored Brushless Competition ESC is engineered for serious RC racers seeking peak performance in a lightweight, compact package. Weighing just thirty-six grams, this ESC combines smart design with powerful output, making it ideal for competitive 1/10 drifting or professional stock class racing. Tailored presets for various race types simplify setup, while advanced cooling technology ensures efficiency and durability. Whether you're navigating off-road challenges or racing on smooth tarmac, the Crest RS120 delivers consistent, high-performance control.
The Crest RS120 features three distinct race presets: Stock Racing Blinky Mode for compliance with no-advance timing rules, a 1/10 Off-Road Mode for truck and bumpy terrain applications, and a 1/10 On-Road Mode for high-speed asphalt action. Each mode is pre-calibrated to deliver tailored power curves, enhancing drivability and control. These profiles remove the guesswork and let racers focus on performance.
Utilizing innovative ultra-thin, windowed cooling N-MOS technology, the Crest RS120 integrates its chip core directly with the metal housing. This engineering feat reduces thermal resistance by 35%, resulting in improved heat dissipation and maintaining 98% energy efficiency. The compact design eliminates bulky heat sinks, allowing for a slimmer ESC that runs cooler and lasts longer, even under demanding race conditions.
With built-in features like adjustable RPM limiting, offline data recording, and independent drag brake and brake frequency control, the Crest RS120 is all about customization. Users can fine-tune their setups in 0.5K increments and analyze performance data via the Cayote BTune ESC Bluetooth Module (CYECBM01 - sold separately) or Cayote Xlink Multifunction LCD Program Box (CYECPB01 - sold separately) with the Cayote APP. This level of precision ensures better handling and strategic insight for competitive drivers.
FEATURES:
- Stock Racing Blinky Mode
- 1/10 Off-Road and On-Road Race Presets
- ROAR approved for compliance with sanctioned racing standards
- Ultra-lightweight at 36 grams
- Cooling N-MOS technology with 35% reduced thermal resistance
- 98% energy efficiency
- Adjustable RPM limit
- Offline data recording for performance analysis
- Independent drag brake and brake frequency control
- High-performance CNC alloy fan system
SPECIFICATIONS:
- Motor Type: Brushless - Sensored/Sensorless
- Input Voltage: 2S LiPo (7.4V)
- Continuous Current: 120A
- Peak Current: 600A
- 540/3650: >10.5T
- BEC Voltage: 6.0/7.4V
- BEC Continuous Current: 5A
- BEC Peak Current: 8A
- Motor Connector: Solder
- Battery Connector: Solder
- ROAR Approved: Yes
- Dimensions (LxWxH): 1.39x1.20x0.96in (35.3x30.5x24.5mm)
- Weight: 1.27oz (36g)
- Programmable: Yes, with Cayote Xlink Program Box*
*Note: The Cayote Xlink Multifunction LCD Program Box (CYECPB01 - sold separately) is required to read the data. Optionally, you can also use the Cayote BTune 1/10 ESC Bluetooth Module (CYECBM01 - sold separately) to connect to the Cayote Team App and set the parameters and update the firmware.
