Castle Creations 060-0056-00 4-Pole Sensored Brushless Motor 4600KV

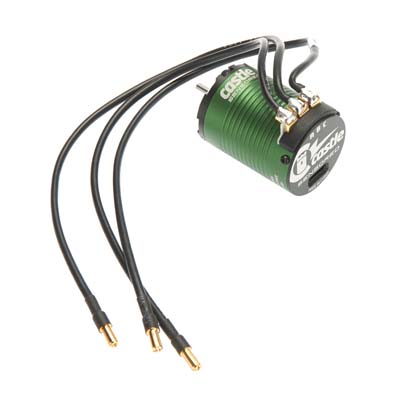

This is the Castle Creations 1406 4600Kv Sensored Brushless Motor.

**NOT for use in 4WD short course trucks.**

FEATURES: For 2WD short course trucks on 2S LiPos geared conservatively,
1/10 scale 2WD stadium trucks and buggies on 2S for bashing and
limited runs on 3S LiPos with conservative gearing, also ideal for
1/10 scale on road cars running on 2S and 3S LiPo power
Four pole configuration for maximum efficiency at high RPM

INCLUDES: 1406 4600Kv Sensored Brushless Motor
Sensor Wire
Three 4mm Female Connectors

REQUIRES: Electronic Speed Control such as the Castle Creations Sidewinder
SV3, CSEM0115

SPECS:

• Input Voltage Range: 2-3S LiPo
• Kv: 4600
  Max.
• RPM: 100,000
  Max.
• Recommended Vehicle Weight: 5lbs (2278g) with battery
• RTR
  Length: 1.9" (49.5mm)
  Diameter: 1.4" (36mm)
• Weight with Wires: 6.9oz (197g)
• Shaft Diameter: 1/8" (3.17mm)
• Shaft Length: 0.59" (15mm)
• Mounting Hole Specifications: M3 @ 25mm
• Connectors: 4mm Male Castle Bullet
