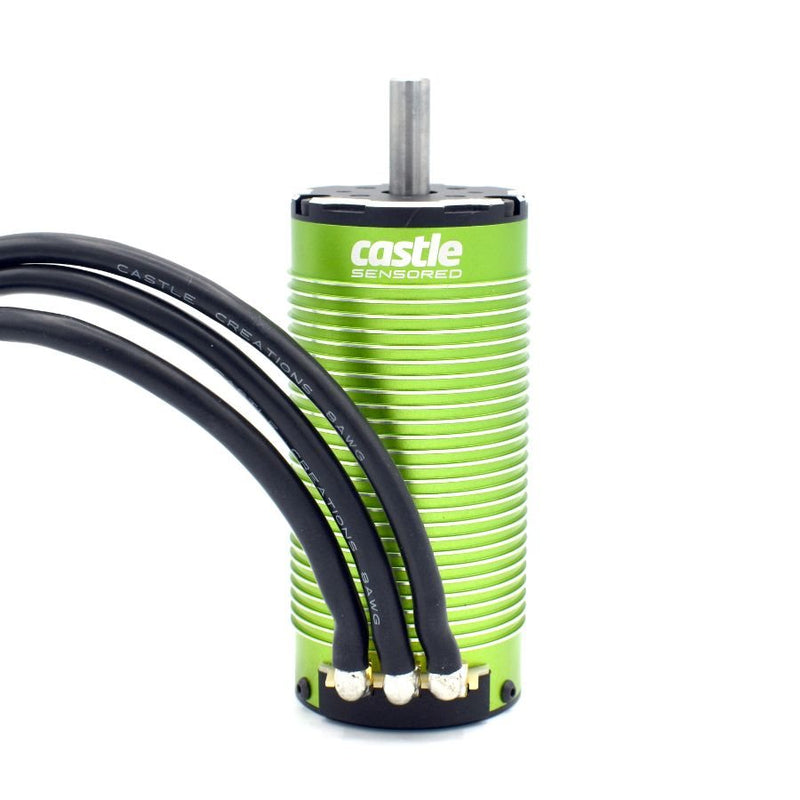

Castle Creations 060-0091-00 Sensored Brushless Motor 2400KV

The 1721-2400Kv motor is available to those that are ready to take their extreme speed and drag setups to the next level

Ideal for running up to 8s LiPo in 1:8 and 1:7 scale vehicles, the mechanical design boasts a stainless-steel sleeve to reinforce and strengthen the rotor for high RPM operation. Coupled with a massive 8mm stainless steel motor shaft, 8.0mm bullets and high strand, low resistance, silicone coated 8 gauge copper wire, the 1721-2400Kv will deliver massive power and maximum top end speed.

SPECIFICATIONS:

• Input Voltage Range:
• Min: 4s LiPo
• Max: 8s LiPo (33.6V)
• Kv: 2400
• Max. RPM: 90,000
• Size:
• Diameter: 1.87” (47.6mm) at fins, 46mm at can
• Length: 101.2mm
• Weight (w/wires): 816.4g (28.8oz)
• Shaft Size:
• Length: 22mm
• Diameter: 8mm
• Mounting Hole Specifications: M3 and M4 @ 25.4mm (1")
• Cooling Fan: Optional, 011-0162-00, can fit two on the 1721 series
• Connectors: 8mm male bullets on 8 gauge wire
• Items Needed for Operation: Compatible Electronic Speed Control (ESC)
• Product Use Statements:
• This is an extremely powerful motor designed for advanced and experienced users only. Below are suggestions for increasing your likelihood of success but it is not guaranteed.
• This is a VERY high RPM motor. Start with very conservative gearing (small pinion/large spur).
• Check your data logs, temperatures and setup closely after each run to ensure you are not stressing components.
• This motor is intended for single passes only; allow time between runs for the ESC, batteries and motor to cool down to ambient temperatures.
• This motor can pull very high amperages. Make sure your batteries, connectors and soldering are capable of handling the loads. Inadequate power can cause poor performance and damage the batteries and/or ESC.
• Do NOT free rev the motor with no load, particularly when running 6s or higher. The RPM output of the motor is much higher with no load as the kv and battery voltages do not drop.
• Set ESC timing to Lowest (0). This motor will pull considerably more amperage as you increase timing. This does not necessarily equate to more speed as it puts more strain on the batteries and causes the voltage to sag. Less is more sometimes.
• Do not exceed 33.6v when using this motor.
• Be sure your pinion and motor bullets are secure before and after each run.
• Recommended ESC(s): Mamba XLX2
• Running Modes: SmartSense™ (with Castle Sensor capable ESC), Sensored and an ultra-efficient Sensorless mode.
• Tech Notes: Water Resistant Design, The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. Castle recommended applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments.
