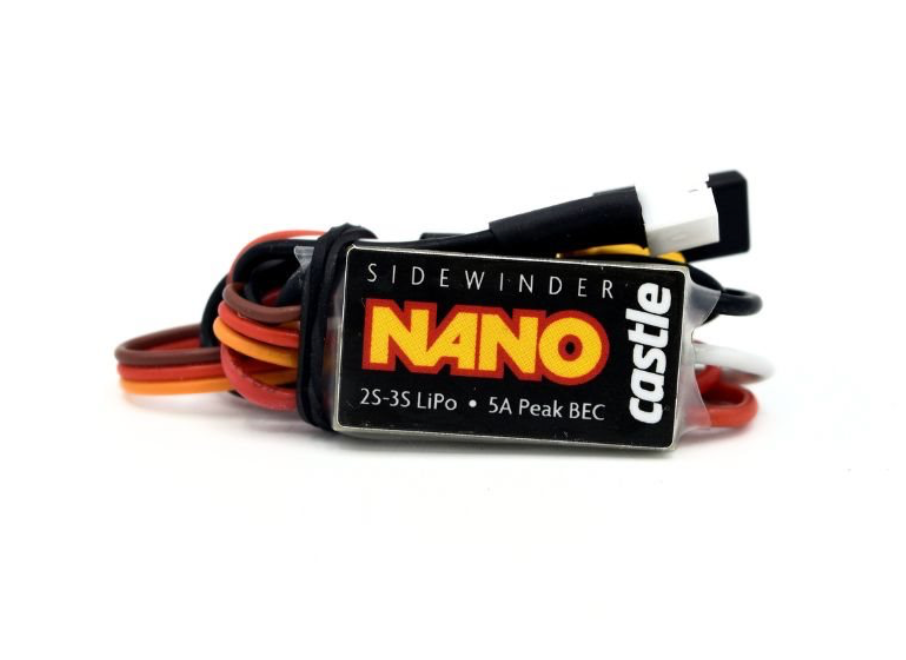

Castle Creations 010-0176-01 Sidewinder Nano Micro PnP ESC with XT30 and JST Plugs

The SIDEWINDER NANO PnP may be small in stature, but it’s colossal in power and includes the proprietary CRYO-DRIVE™ Technology resulting in improved thermal performance during partial throttle operation where the majority of driving occurs. The Sidewinder Nano is ready-to-run out of the box but can also be “tuned” for the drivers’ preferences using a Windows® based PC and a Castle Link USB adapter (sold separately), or with a mobile device using Castle B-Link Bluetooth® Adapter (sold separately). The PnP version comes with an XT30 battery connectors and JST plug pre-installed on the battery and motor wires. The JST plug is commonly found on most aftermarket outrunner style motors for 1/24th scale.

FEATURES:

• Input Voltage Range 2s-3s LiPo, 12.6V Max
• Sensorless and Brushed Running Modes
• Internal BEC 5V Fixed, 5A Peak
• CRYO-DRIVE™ Technology minimizes the amount of time the ESC’s electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs
• Castle Link tuning via Windows PC and a Castle Link USB adapter (sold separately)
• Convenient TRANSMITTER PROGRAMMING for six common adjustable settings including cutoff voltage and drag brake
• Optional smartphone-based programming with the B-LINK™ Bluetooth Adapter (sold separately) and Castle Link app available on Google Play or Apple App Store
• Audible alerts for easy diagnoses of common issues such as low-voltage cutoff
• Proudly designed and supported in Kansas, USA.

SPECIFICATIONS:

• BEC: Yes
• BEC Maximum Burst Current: 5A Peak
• BEC Voltage: 5V fixed output
• Connector Type: XT-30
• Forward: Yes
• Reverse: Yes
• Input Voltage: 2s - 3s LiPo Max: 12.6V
• Motor Type: Brushless
• Product Height: 0.37" (9 mm)
• Product Length: 1.1" (28 mm)
• Product Width: 0.61" (15 mm)
• Product Weight: 0.5 oz. (14g)
• Sensored: No
