Castle Creations 010-0169-01 Mamba Micro X2 16.8V ESC w/ 4100kV Brushless Motor
Save 18% Save 18%
$152.95
$152.95 - $152.95
$152.95
$124.99
$124.99 - $124.99
$124.99
by Castle Creations

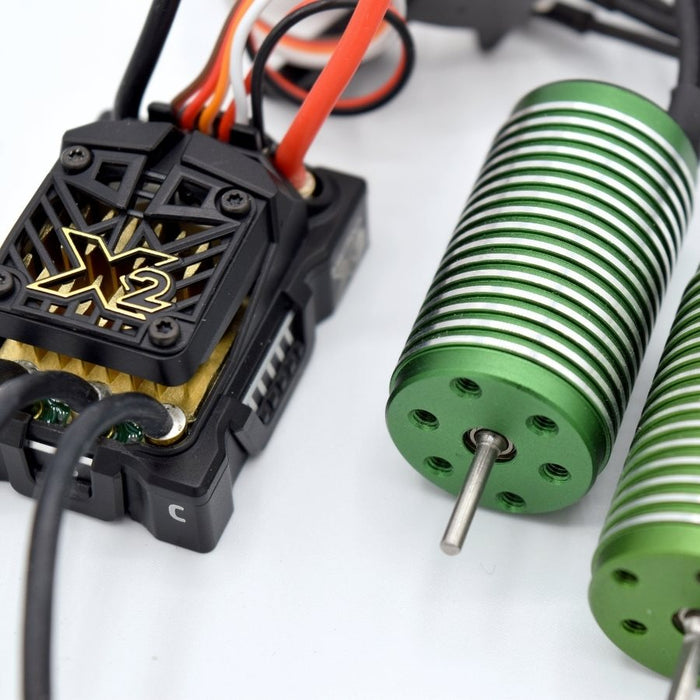

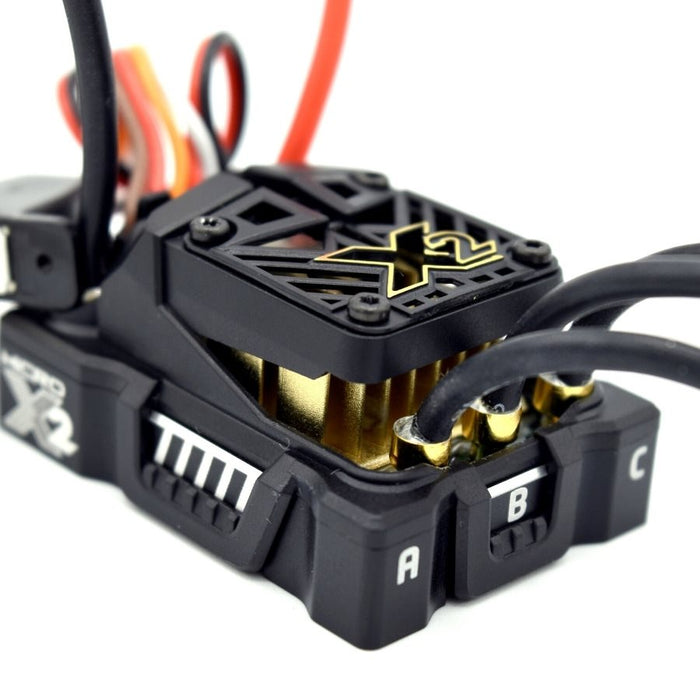

Castle Creations 010-0169-01 Mamba Micro X2 16.8V ESC w/ 4100kV Brushless Motor

Putting the X in Extreme!

The Mamba Micro X2 is a refresh of our popular 1:18 scale Mamba Micro X. This new ESC increases the maximum input voltage to 4s. We also added DATA LOGGING and our CRYO-DRIVE™ TECHNOLOGY; CryoDrive allows the ESC to run cooler and more efficiently at partial throttle. Like its predecessor, it boasts an 2 amp peak BEC, waterproof* and has SENSORED MOTOR SUPPORT (included 0808 is sensorless).

This is the perfect upgrade for 1:18 scale RC vehicles, up to 3S LiPo and weighing in at up to 2.25lbs. Vehicles include: Traxxas Slash 4x4 1/16th, Losi Mini-T 2.0, Traxxas LaTrax Rally, Traxxas LaTrax Teton, Axial Yeti Jr.

The Mamba Micro X also works well in some 1:10th scale crawlers for low speed operation (no rock racing/hill climbing). You can now purchase the Mamba Micro X2 Crawler Edition ESC paired with our Slate Crawler motors.

FEATURES:

  • Input Voltage range 2S-3S (with included 0808-4100Kv motor)
  • Adjustable: 5.5V or 7.5V (2A Peak), default 5.5V
  • Waterproof design.
  • Convenient transmitter programming for six common adjustable settings.
  • Additional settings and software updates available via Windows®-based Castle Link software and USB adapter (coupon included with purchase) or the Castle Link App for Android or iOS and a B-LINK Bluetooth Adapter (sold separately)
  • Telemetry Ready (Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters)
  • Auxiliary Wire Functionality allows for “on-the-fly” adjustments such as Max Power and Max Brake.
  • Audible Alerts that will notify you of possible issues with calibrations and error conditions.
  • Designed and manufactured in Olathe, Kansas and is backed by our 1-year warranty.

INCLUDES:

  • Mamba Micro X2 ESC

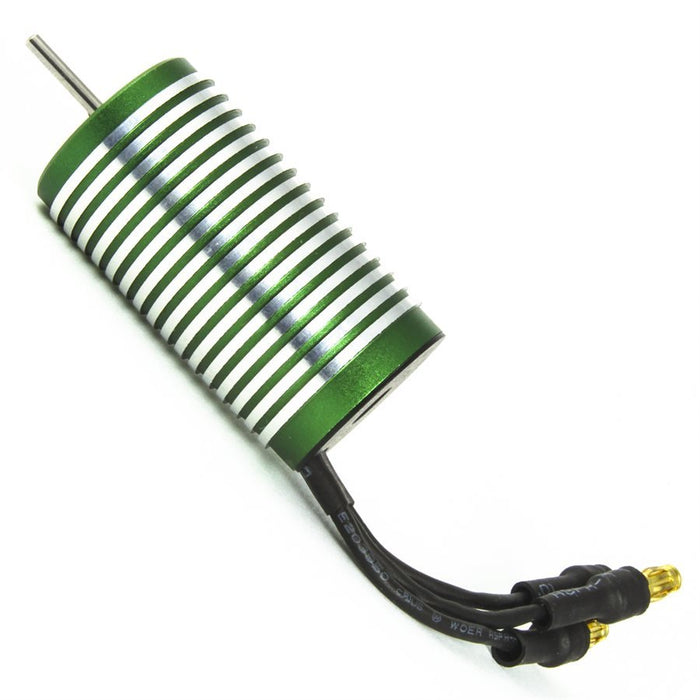

  • 0808-4100Kv Brushless Sensorless Motor
  • Coupon for free Castle Link USB adapter
  • Quick Start Guide
  • Castle Decals

*Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit.
