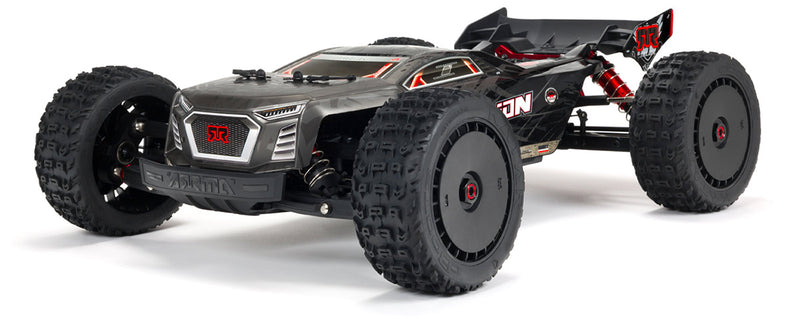

ARRMA ARA8707 1/8 RTR EXB TALION 6S Extreme Bash Truggy

SPECIFICATIONS:

• SCALE: 1/8
• POWER LEVEL: 6S
• MAIN BODYSHELL IDENTITY COLOR: Black
• MAX SPEED POSSIBLE: 70+mph / 112+km/h
• POWER TYPE: Brushless
• BUILD STATUS: RTR
• SPEED WITH RECOMMENDED BATTERY (MPH): 70+mph / 112+km/h
• BUILD CONFIGURATION OPTIONS: Mid Motor
• DRIVE TYPE: 4WD
• VEHICLE TYPE: Speed Truggy
• SURFACE: Off-road
• LENGTH: 550mm / 21.65"
• WHEELBASE: 378mm / 14.88"
• RIDE HEIGHT: 45mm / 1.77"
• FRONT WIDTH: 418mm / 16.46"
• REAR WIDTH: 415mm / 16.34"
• HEIGHT: 180mm / 7.09"
• BODY LENGTH: 442mm / 17.4"
• BODY WIDTH: 199mm / 7.83"
• BODY HEIGHT :104mm / 4.09"
• WHEELIE BAR FITTED :No
• FRONT SPRING RATE: 1.35N/mm
• REAR SPRING RATE: 0.94N/mm
• CAPTURED HINGEPINS: Yes
• TURNBUCKLES/FIXED LINKS: Turnbuckles
• HARDWARE: TYPE Hex Head
• LOCKING DIFFS: No
• DIFFERENTIAL TYPE: Gear
• NUMBER OF DIFFERENTIALS: 3
• STANDARD SHOCK OIL (VISCOSITY): 2000cSt
• STANDARD DIFF OIL (VISCOSITY): F:10k C:100k R:10kcSt
• STANDARD SHOCK OIL (TYPE): Silicone
• STANDARD DIFF OIL (TYPE): Silicone
• DIFFERENTIAL CROWN GEAR SPECIFICIATION: 43T 1.0m
• DIFFERENTIAL PINION GEAR SPECIFICIATION: 10T 1.0m
• INTERNAL GEAR RATIO: 4.3
• INTERNAL GEAR MATERIAL: Metal
• FITTED SPUR SIZE: 50Tooth
• FITTED SPUR MATERIAL: Metal
• FITTED PINION GEAR SIZE: 15Tooth
• FITTED PINION MATERIAL: Metal
• EXTRA SPEED PINION INCLUDED: Yes
• PINION AND SPUR TOOTH PITCH: 1m
• OPTION GEARING: 23 Tooth pinion
• STANDARD FINAL GEAR RATIO: 14.33
• FINAL GEAR RATIO RANGE: 9.77 - 17.92
• TIRE STANDARD: MT (4.2")
• TIRES INCLUDED: dBoots KATAR Belted
• TIRE DIAMETER: 145mm / 5.71"
• TIRE INSERT TYPE: Medium
• DRIVESHAFT TYPE CVD: Front/Dogbone Rear
• WHEEL BEAD DIAMETER: 104mm / 4.09"
• WHEEL HEX SIZE: 17mm
• WHEEL STANDARD: MT (4.2")
• WHEEL COLOR/FINISH: Black
• MOUNTED TIRES: Yes
• TIRE ATTACHMENT METHOD :Glued
• WEIGHT (NO BATTERY): 4.29kg / 9lbs 7oz
• RADIO SYSTEM: Spektrum DX3 Tx/SR6110AT AVC Rx
• 2.4GHZ: Yes
• NUMBER OF RADIO CHANNELS: 3
• ESC: Spektrum FIRMA 150 SMART
• WATERPROOF ELECTRONICS: Yes
• ESC CONNECTOR TYPE: IC5
• MOTOR: Spektrum FIRMA 4074 2050Kv
• MAXIMUM MOTOR SIZE: 43mm diameter, 80mm length
• SERVO: Spektrum S652 Digital
• SERVO GEAR MATERIAL: Steel
• SERVO HORN MATERIAL :Metal
• SERVO SPLINE SIZE: 23T
• BATTERY CONNECTOR SUPPLIED: IC5
• BATTERY RECOMMENDATIONS: 4S or 6S Lipo (Hard or soft-case) within dimensions 158 x 48 x 70mm or 6.22 x 1.89 x 2.76 inches. 50C 5000mAh Minimum
• RECOMMENDED LIPO BATTERY MINIMUM CONTINUOUS DISCHARGE RATE: 50C 5000mAh
• BATTERY MAX DIMENSIONS: 158x48x70mm / 6.22x1.89x2.76"
• CHASSIS MATERIAL: 3mm Plate, 7075-T6 Aluminum
• TRIMMED BODY: Yes
• BODY-ON BATTERY ACCESS: No
• BODY PIN RETAINERS: Yes
• WARRANTY LEVEL: 2 Year Limited
• REQUIRED ITEMS: 2x2S LiPo, 2x3S LiPo, 1x4S LiPo OR 1x6S LiPo Battery, LiPo Charging Bag, Charger, 4 x 'AA' Batteries
• TORQUE SPLIT: 50/50
• TOOLS INCLUDED :Cross Wrenches and Hex Wrenches (1.5, 2.0, 2.5,3.0, 5.0mm)
• ADDITIONAL PARTS: 23T Speed Pinion, IC5 Loop connector (for use with single 4S or 6S battery pack)
• MAX SERVO SPEED @7.4V: 0.167sec
