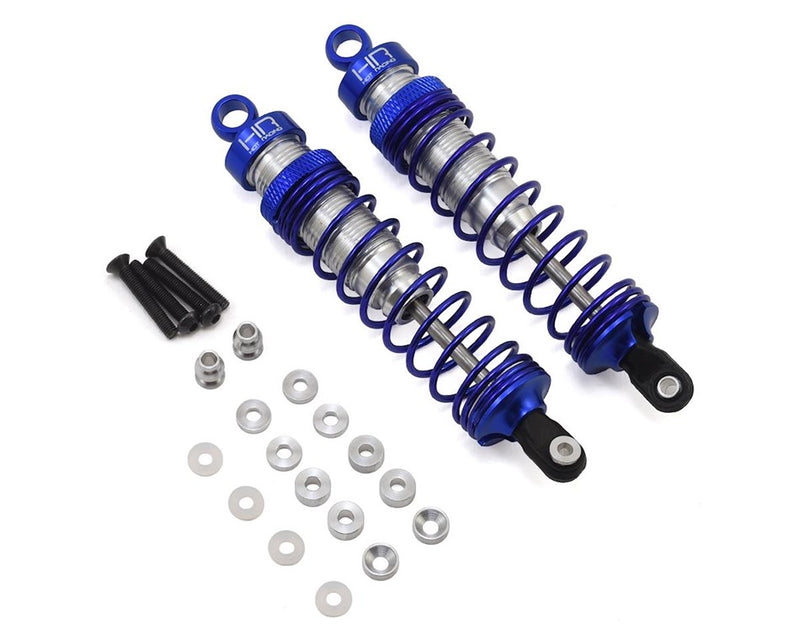

Hot Racing HRATD100X06 Aluminum 100mm Heavy Duty Big Bore Shocks

2 Pack

Hot Racing Traxxas Slash 4x4 Aluminum 100mm HD Big Bore Shocks are big bore threaded body aluminum shocks that fit the Traxxas Slash, Slash 4x4 and other models that use a 100mm shock.

FEATURES:

• CNC machined 6061-T6 billet aluminum shock bodies, collars, caps, and spring retainers
• "Big Bore" threaded shock bodies
• CNC machined 11mm Delrin pistons
• 3.5mm stainless steel shock shafts
• Silver and blue anodized aluminum components
• Vented shock caps with bladder seals for consistent rebound dampening
• Threaded shock collars with o-rings to prevent unwanted movement
• Composite plastic lower shock ends with aluminum balls
• Fully assembled, just add shock oil and bleed
• Requires Silicone shock oil and bleeding per the typical bladder shock bleeding procedure
• Replaces Traxxas Big Bore XX-Long Shocks: 2662, 3762, 3762A, 7462X

SPECIFICATIONS:

• Extended length: 100mm
• Compressed length: 70mm
• Overall length: 110mm
• Spring: 1.54mm wire, 13 turn dual rate, 19.3mm OD, 69.5mm long

NOTE: Use spacers as need for installation

COMMENTS:

Accept optional Shock boot if need. Can be use with this Hot Racing Spring SLF63FS261 SLF63MR268 SLF63RS286 Must Bleeding the shock, 1) If the shock shaft push out more the 6mm(1/4 ). 2) If you can not push the shock shaft all the way in. THERE IS TOO MUCH OIL. Loosen the cap a half turn put the shock shaft in to pump out the excessive amount of oil Tips Make sure oil are fill to the top with no air in the oil and when Screw down the cap the shock shaft should be about 3 to 4mm out.
