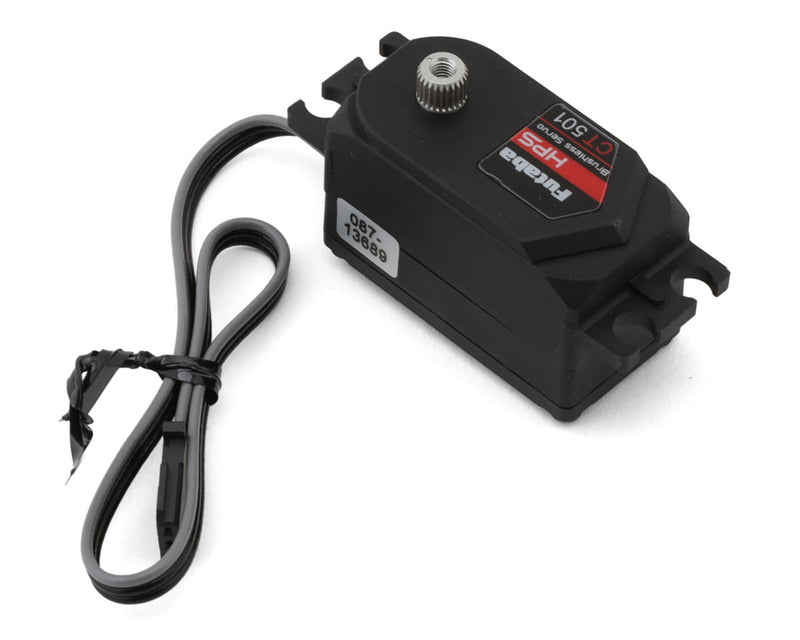

Futaba FUT01102389-1 Low Profile Brushless S.Bus2 High Voltage Metal Gear Servo

The Futaba HPS-CT501 packs serious speed, torque, and precision into a lightweight low-profile design, delivering up to 291.6 oz-in of torque and a lightning-fast 0.06-second response for 1/10 on-road and drift cars.

The Futaba HPS-CT501 is a lightweight low-profile brushless servo built for demanding 1/10 on-road and drift applications, delivering an impressive 291.6 oz-in of torque and ultra-fast 0.06-second response at 7.4V, while its all-metal gears, dual ball bearings, high-voltage capability, and programmable S.Bus/S.Bus2 compatibility provide exceptional speed, precision, durability, and tuning flexibility.

FEATURES:

• Up to 291.6 oz-in of torque at 7.4V
• Ultra-fast 0.06 sec/60° speed at 7.4V
• Powerful brushless motor
• Durable all-metal gears
• Smooth operation with dual ball bearings
• Lightweight low-profile design
• Programmable S.Bus and S.Bus2 compatible
• Supports 6.0–7.4V high-voltage operation

SPECIFICATIONS:

• Application: Low Profile 1/10 Scale On-Road
• Input Voltage: 6.0-7.4V
• Operating Speed @ 6.0V: 0.07 sec/60°
• Operating Speed @ 7.4V: 0.06 sec/60°
• Dynamic Torque @ 6.0V: 237.5oz-in (17.1kg-cm)
• Dynamic Torque @ 7.4V: 291.6oz-in (21kg-cm)
• Gear Material: Metal
• Motor Type: Brushless
• Output Shaft Spline: 25T
• Dimensions: 1.59x0.83nx1.06in (40.5x21x26.9mm)
• Weight: 1.55oz (44g)
